YOKOGAWA differential pressure transmitter EJA110E-JFS5G-919EJ/M01/KF22

6AV7240-3DC06-0HA0 SIMATIC IPC 477D, 19″ touch

David Chong

Code	Description	Explanation
EJA110E	Product Series	Traditional-mount differential pressure transmitter in the EJA-E Series .
J	Output Signal	4 to 20 mA DC with HART 5/HART 7 protocol digital communication .
F	Measurement Span (Capsule)	0.5 to 5 kPa (2.0 to 20 inH₂O). This low-range capsule is specifically designated for wetted parts material code S .
S	Wetted Parts Material	ASTM CF-8M (equivalent to 316L stainless steel) for process-wetted parts .
5	Process Connection	Without process connector; 1/4 NPT female threads on the cover flanges .
G	Bolts and Nuts Material	316L SST (stainless steel) .
9	Installation Orientation	Horizontal piping with the high-pressure side on the left .
1	Amplifier Housing	Cast aluminum alloy .
9	Electrical Connection	1/2 NPT female threads, with two electrical connections and a blind plug .
E	Integral Indicator	Digital indicator with a range-setting switch (push-button)

Code

Description

Explanation

EJA110E

Product Series

Traditional-mount differential pressure transmitter in the EJA-E Series .

Output Signal

4 to 20 mA DC with HART 5/HART 7 protocol digital communication .

Measurement Span (Capsule)

0.5 to 5 kPa (2.0 to 20 inH₂O). This low-range capsule is specifically designated for wetted parts material code S .

Wetted Parts Material

ASTM CF-8M (equivalent to 316L stainless steel) for process-wetted parts .

Process Connection

Without process connector; 1/4 NPT female threads on the cover flanges .

Bolts and Nuts Material

316L SST (stainless steel) .

Installation Orientation

Horizontal piping with the high-pressure side on the left .

Amplifier Housing

Cast aluminum alloy .

Electrical Connection

1/2 NPT female threads, with two electrical connections and a blind plug .

Integral Indicator

Digital indicator with a range-setting switch (push-button)

Part Number		Parts SKU
Power（HP/KW）		Manufacturer
Input Voltage（V）		Place of Origin
Current（A）		Series/family
Net Weight (kg)		Product Status

Part Nr: YOKOGAWA differential pressure transmitter EJA110E-JFS5G-919EJ/M01/KF22

Brand: Type: State:

Do you want to buy New Factory Seal item ? Item In stock, Contact us to get a best price.

Do you want to buy Used item ? Item In stock, Contact us to get a best price.

Part Number

Warranty Terms and Conditions

Delivery Methods

pdf datasheet download in here

We have Competitive parices for part

COMPETITIVE PRICES FOR BOTH NEW AND REFURBISHED PARTS

EXPRESS DELIVERY – 65,000 ITEMS IN STOCK

24/7 RELEASE FROM THE WAREHOUSE

COMPETITIVE PRICES FOR BOTH NEW AND REFURBISHED PARTS

FAULT DIAGNOSTICS

OUR OWN REPAIR CENTRE IN CHINA

BUYOUTS OF UNWANTED, DAMAGED AND/OR NON-FUNCTIONAL PARTS

THE DISASSEMBLY OF ENTIRE PRODUCTION LINES

DO YOU HAVE A PART FOR SALE?

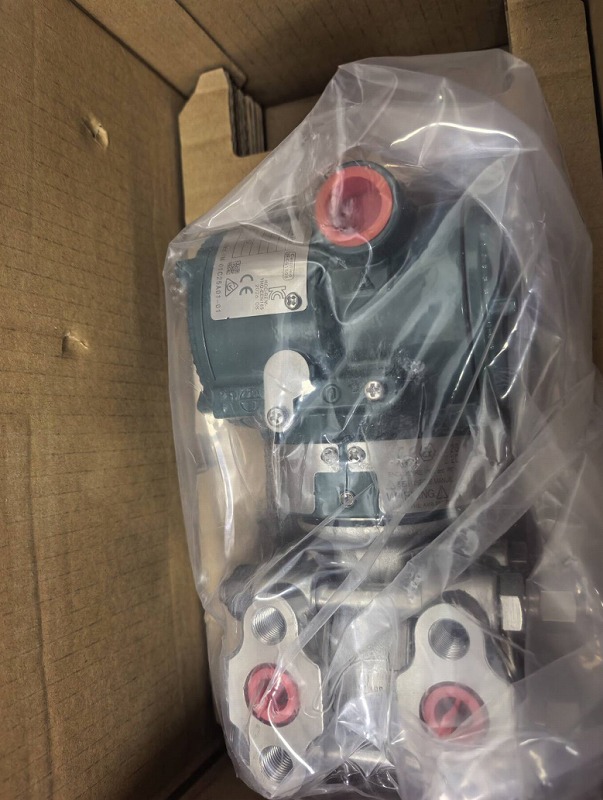

EJA110E-JFS5G-919EJ/M01/KF22
