Part Nr: ABB VD4/P 12.12.32

Brand:   Type:
State:

Buy at DCS-Centers.com, Best price and Big Stock.

Technical Data Sheet
Model: VD4/P 12.12.32
Product: ABB Indoor Withdrawable Vacuum Circuit Breaker

Parameter Specification
Model Number VD4/P 12.12.32
Brand ABB
Product Type Indoor withdrawable vacuum circuit breaker
Rated Voltage 12 kV
Rated Normal Current 1250 A
Rated Short-circuit Breaking Current 31.5 kA
Rated Short-time Withstand Current 31.5 kA, 4 s
Rated Peak Withstand Current 80 kA
Rated Frequency 50 / 60 Hz
Insulation Type Vacuum
Pole Assembly Embedded resin pole
Operating Mechanism Spring operating mechanism, anti-pumping device
Mechanical Endurance 50,000 operating cycles
Operating Sequence O-0.3s-CO-3min-CO
Power Frequency Withstand Voltage 42 kV
Lightning Impulse Withstand Voltage 75 kV
Overall Dimensions (W×H×D) 439 mm × 618 mm × 662 mm
Net Weight Approx. 110 kg
Application Indoor power distribution system, substation, transformer, motor and capacitor bank protection & control
Compliance Standards IEC 62271-100, GB 1984, DL/T 403

parts photo album​

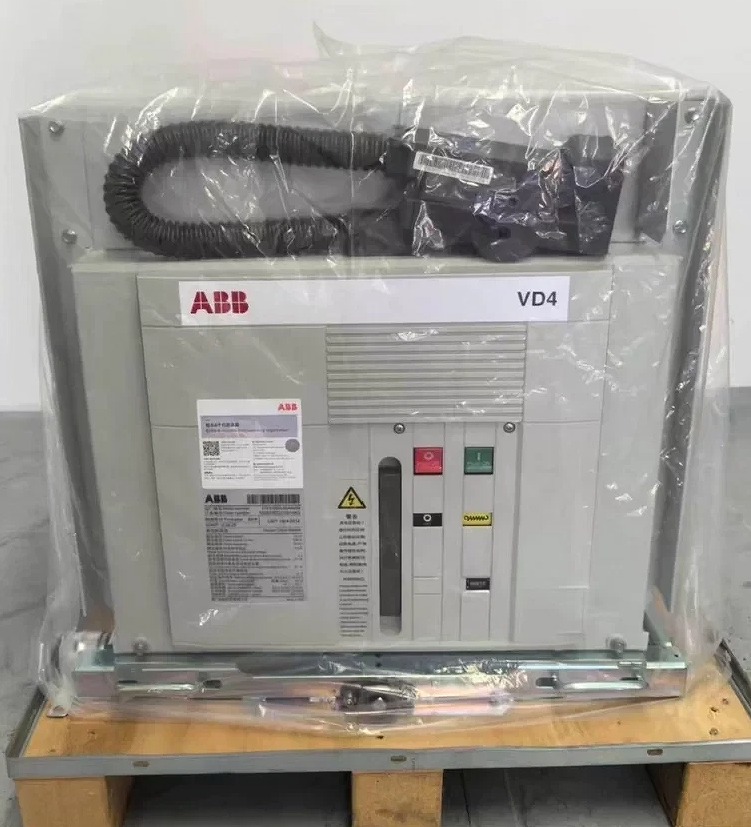

ABB VD4/P 12.12.32
