| Parameter Item | Official Specification Value |
|---|---|

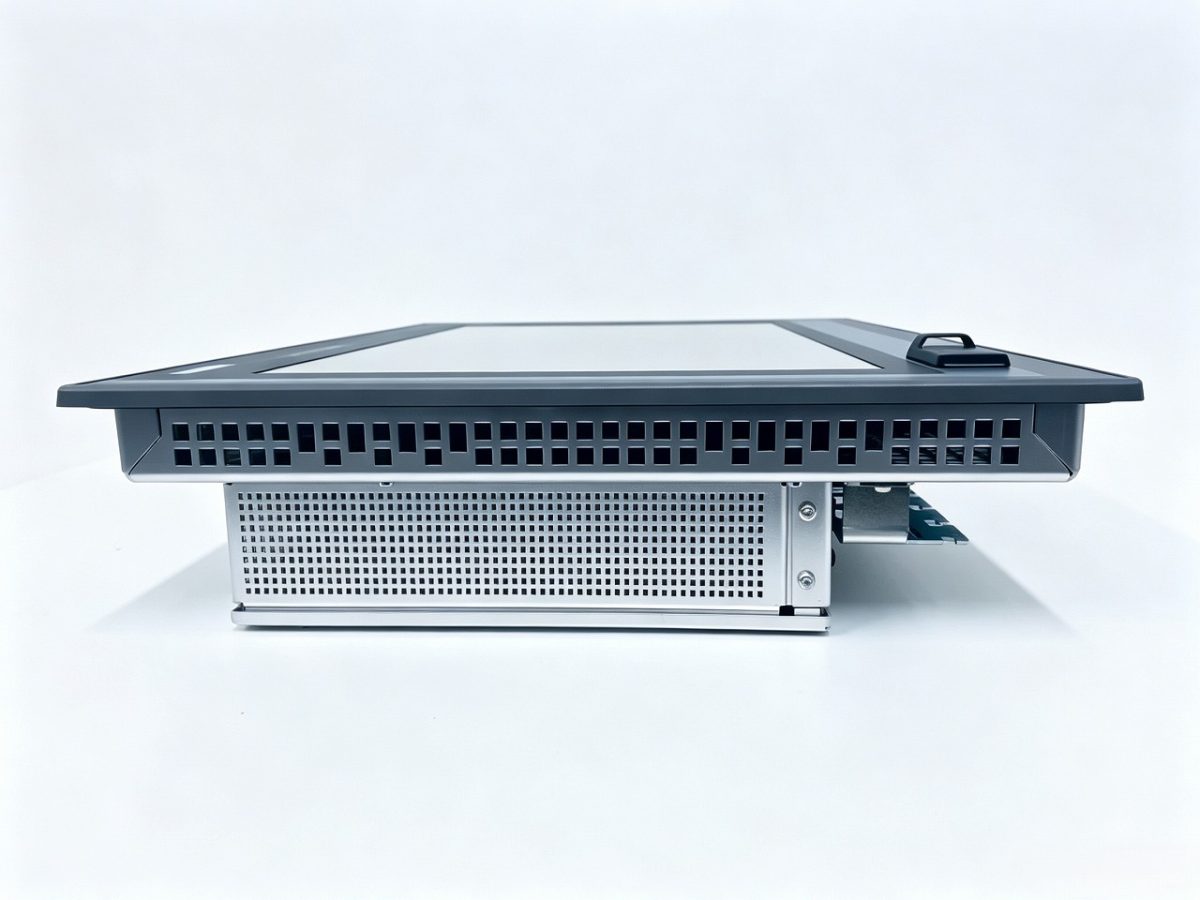

| Full Article Number | 6AV7240-3DC04-3DA0 |
| Product Series | SIMATIC IPC 477D Panel Industrial PC |
| Display Spec | 19-inch analog resistive touch TFT, SXGA 1280×1024 |
| Processor | Intel Core i3-3217UE (2C/4T, 1.6 GHz, 3 MB L3 cache) |
| System Memory | 4 GB DDR3 non-ECC RAM, max expandable to 8 GB |
| Storage Media | No built-in drive bay; equipped with replaceable 8 GB CFast card |
| Integrated Ethernet Ports | 2×10/100/1000 Mbps industrial Ethernet (IE/PN) |
| PROFINET Function | Supports PROFINET IRT real-time communication |
| USB Interfaces | 4×USB2.0 (rear panel), 1×USB2.0 (front panel) |
| Serial Interface | 1× isolated RS-232 port |
| Expansion Slot | No PCIe expansion slot reserved |
| Pre-installed OS | Windows Embedded Standard 7, 32-bit multi-language |
| SIMATIC Software | No pre-installed SIMATIC automation software |
| Power Supply | DC 24 V SELV industrial power, range DC19.2–28.8 V |
| Typical Power Consumption | Approx. 38 W |
| Mechanical Cutout Size | W463 mm × H292 mm cabinet panel cutout |
| Overall Dimension (W×H×D) | 483 mm × 312 mm × 76 mm |
| Net Weight | Approx. 6.4 kg |
| Front Panel Protection | IP65 / NEMA 4X for cabinet embedded installation |
| Rear Terminal Protection Class | IP20 |
| Continuous Operating Temp | 0 °C ~ +45 °C full load operation |
| Storage & Transport Temp | -25 °C ~ +70 °C |
| Relative Humidity | 5%–80% RH, no condensation |
| Vibration Resistance | IEC 60068-2-6: 5–500 Hz, 9.8 m/s² (with CFast) |
| Shock Resistance | IEC 60068-2-27: 150 m/s², 11 ms |
| Built-in Graphics | Intel HD integrated graphics controller |
| Certifications | CE, UL, cULus, FCC, GL marine certification, RoHS 2.0 |
