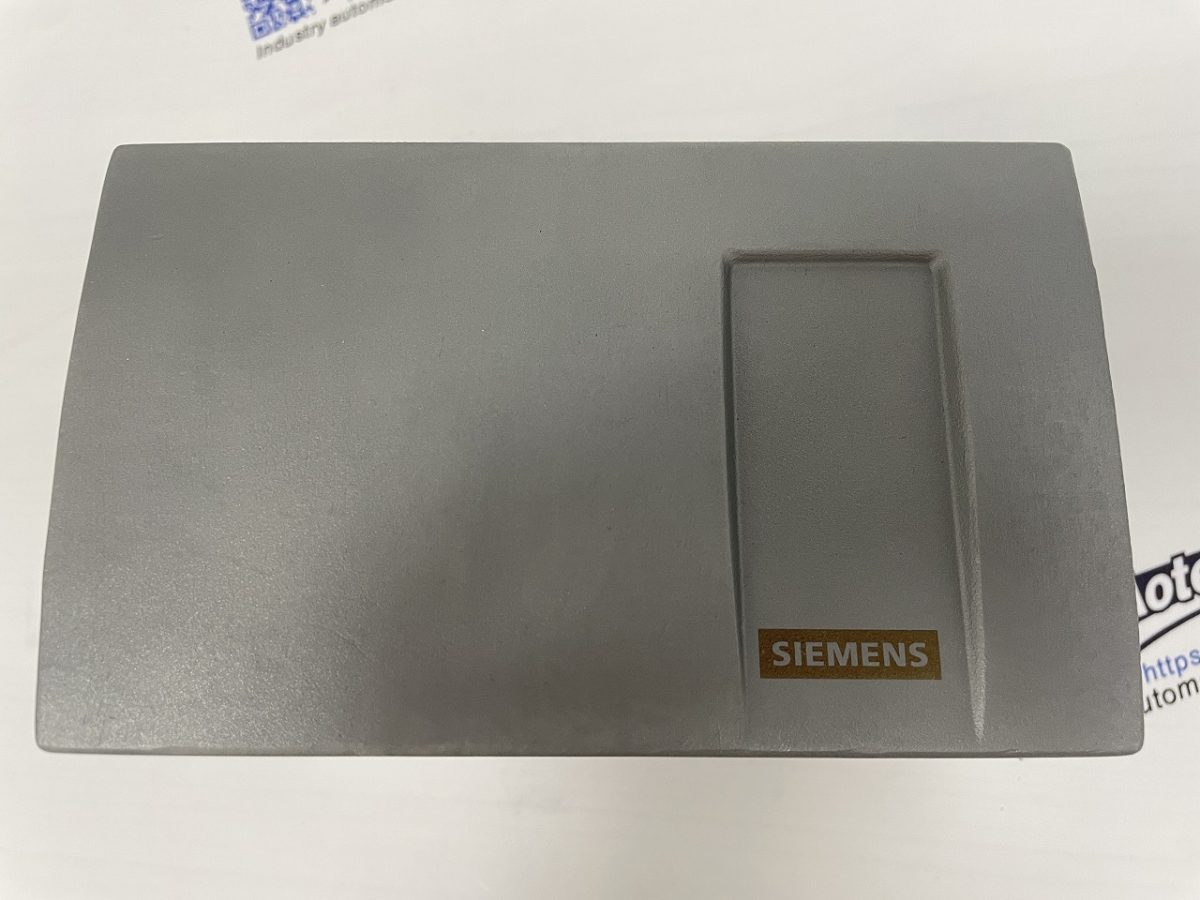

6DR5112-0NG01-0AA0
SIPART PS2 Smart, electropneumatic positioner, 4…20mA, HART, Ex/nEx, single-acting, SST enclosure, no window, for pneumatic linear and part-turn actuators. Non-contacting (wear-free) position detection (NCS). Not in combination with pressure sensor option P01/P02. Standard Without explosion protection. Connection thread el.: M20x1.5 / pneu.: G 1/4 Without limit monitor. Analog Output Module (AOM), analog position feedback 4 … 20 mA. Device plug M12 optionally orderable with -Z D53. Isolating power supply SITRANS I100 separately orderable (7NG4124-1AA00). . Brief instructions English / German / Chinese. Standard / Fail-Safe – Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Without Manometer block / Booster.
| Order Number | 6DR5112-0NG01-0AA0 |
| Product Family | SIPART PS2 Smart |
| Product Type | Electropneumatic Positioner |
| Input Signal | 4 – 20 mA |
| Communication Protocol | HART |
| Explosion Protection | Ex/nEx – without explosion protection (standard version) |
| Actuator Type | Single‑acting |
| Enclosure Material | SST (stainless steel) enclosure, without window |
| Application | For pneumatic linear and part‑turn actuators |
| Position Detection | Non‑contacting (wear‑free) position detection (NCS) Note: Not in combination with pressure sensor option P01/P02 |
| Analog Output Module (AOM) | Analog position feedback 4 … 20 mA |
| Fail‑Safe Function | Standard / Fail‑Safe – depressurizing the actuator in case of failure of electrical auxiliary power (single‑acting only) |
| Pneumatic Connection Thread | G 1/4 |
| Electrical Connection Thread | M20 × 1.5 |
| Limit Monitor | Without limit monitor |
| Manometer Block / Booster | Without manometer block / booster |
| Optional Accessories (order separately) | • Device plug M12: orderable with ‑Z D53 • Isolating power supply SITRANS I100: 7NG4124‑1AA00 |
| Included Documentation | Brief instructions in English / German / Chinese |
| Net Weight | 3.900 kg |
| Packaging Dimensions | Not available |
| Country of Origin | Germany |
