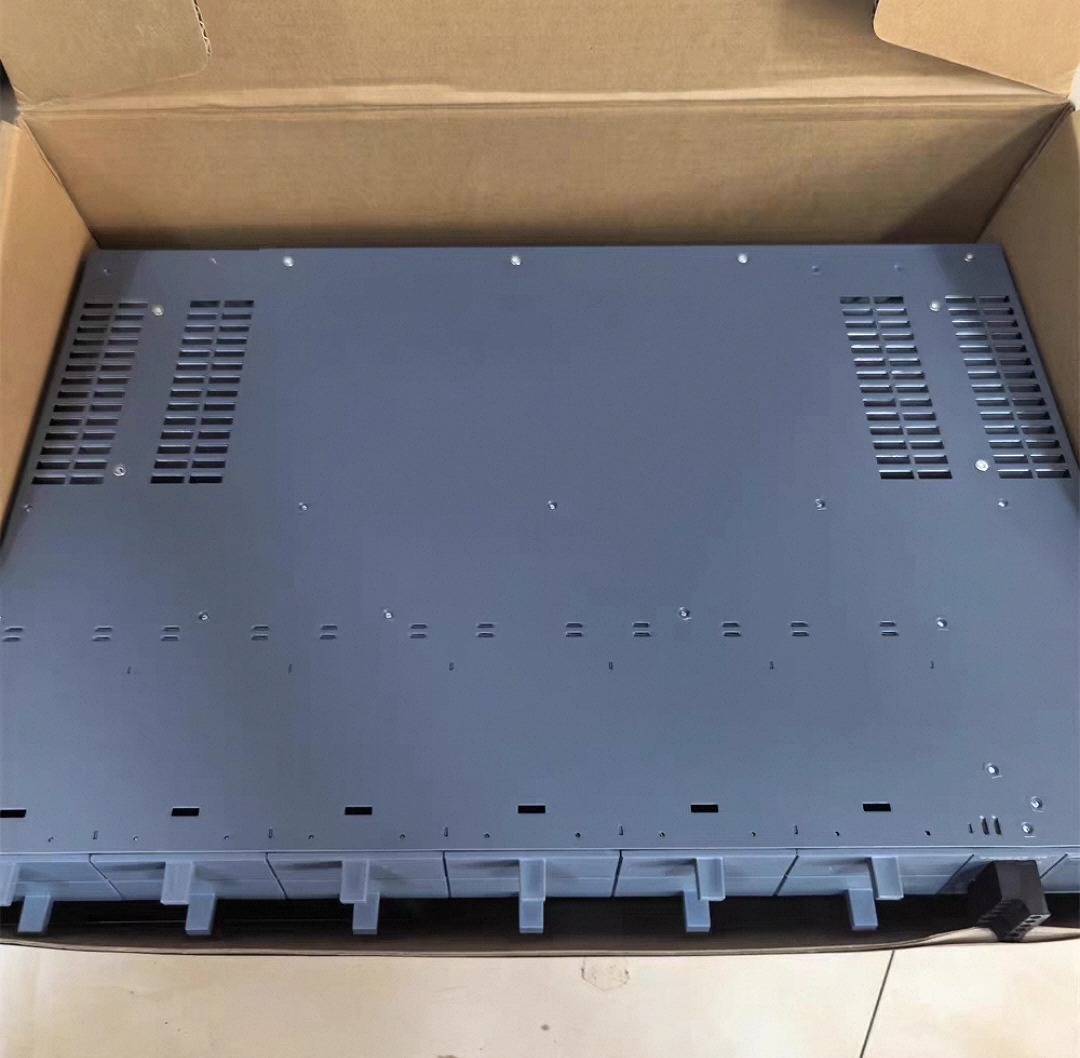

| Specification Item | Parameter Value |
|---|---|
| Basic Product Information | |
| MLFB Order Code | 6GK5324-0GG00-1AR2 |
| Product Series | SCALANCE XR300 |
| Device Type | Layer 2 Managed Industrial Gigabit Ethernet Switch |
| Model Designation | XR324-12M |
| Country of Origin | Germany |
| Mounting Type | 19-inch Standard Rack-mountable |
| Port Orientation | Front-facing Ports |
| Protection Class | IP30 (Cabinet Internal Installation Only) |
| Cooling Method | Passive Natural Convection Cooling |
| Included Accessories | C-PLUG Configuration Memory Card |
| Power Supply Specifications | |
| Rated Input Voltage | 24 V DC (Wide Range: 18 ~ 30 V DC) |
| Rated Input Current | 1.6 A @ 24 V DC |
| Power Supply Configuration | Single Non-redundant DC Power Input |
| Input Protection | Built-in Reverse Polarity, Overcurrent, Overvoltage Protection |
| Port & Interface Specifications | |
| Media Module Slots | 12 x 2-port Hot-swappable Media Module Slots |
| Supported Module Speed | 100/1000 Mbps (Electrical RJ45 / Optical SFP) |
| Maximum Total Port Capacity | 24 x 100/1000 Mbps Ports |
| Diagnostic Interfaces | LED Status Indicators, Select/Set Pushbutton |
| Management Console Port | RJ11 Serial Console Port |
| Fault Signaling Interface | 2-pin Terminal Block for Error Signaling Contact |
| Network Performance & Protocols | |
| Switching Capacity | 48 Gbps |
| Forwarding Rate | 35.7 Mpps |
| Supported Industrial Protocols | PROFINET IO, EtherNet/IP, RSTP, VLAN, IGMP Snooping/Querier, ACL, IEEE 802.1Q, IEEE 802.1p |
| Network Management | Web GUI, SNMP, TIA Portal/STEP 7 Integration, PROFINET System Diagnostics |
| Traffic Control | Integrated Multicast/Broadcast/Unicast Traffic Limiter |
| Redundancy & Security Features | |
| Redundancy Capabilities | Integrated Redundancy Manager, MRP Media Redundancy Protocol, RSTP |
| Ring Redundancy Reconfiguration Time | < 200 ms |
| Security Functions | Port Security, Access Control Lists (ACL), Storm Control, Loop Detection |
| Industrial Cybersecurity Certification | IEC 62443-4-2 |
| Dimensions & Weight | |
| Overall Width | 44 mm |
| Overall Height | 483 mm |
| Overall Depth | 305 mm |
| Net Weight | 6.32 kg |
| Environmental & Compliance Specifications | |
| Operating Temperature Range | 0 °C ~ +60 °C (Derated to +50 °C for Vertical Installation) |
| Storage Temperature Range | -40 °C ~ +85 °C |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Vibration Resistance | IEC 60068-2-6 Compliant |
| Shock Resistance | IEC 60068-2-27 Compliant |
| Regulatory Certifications | CE, UL, cULus, IEC 62443-4-2, RoHS |
