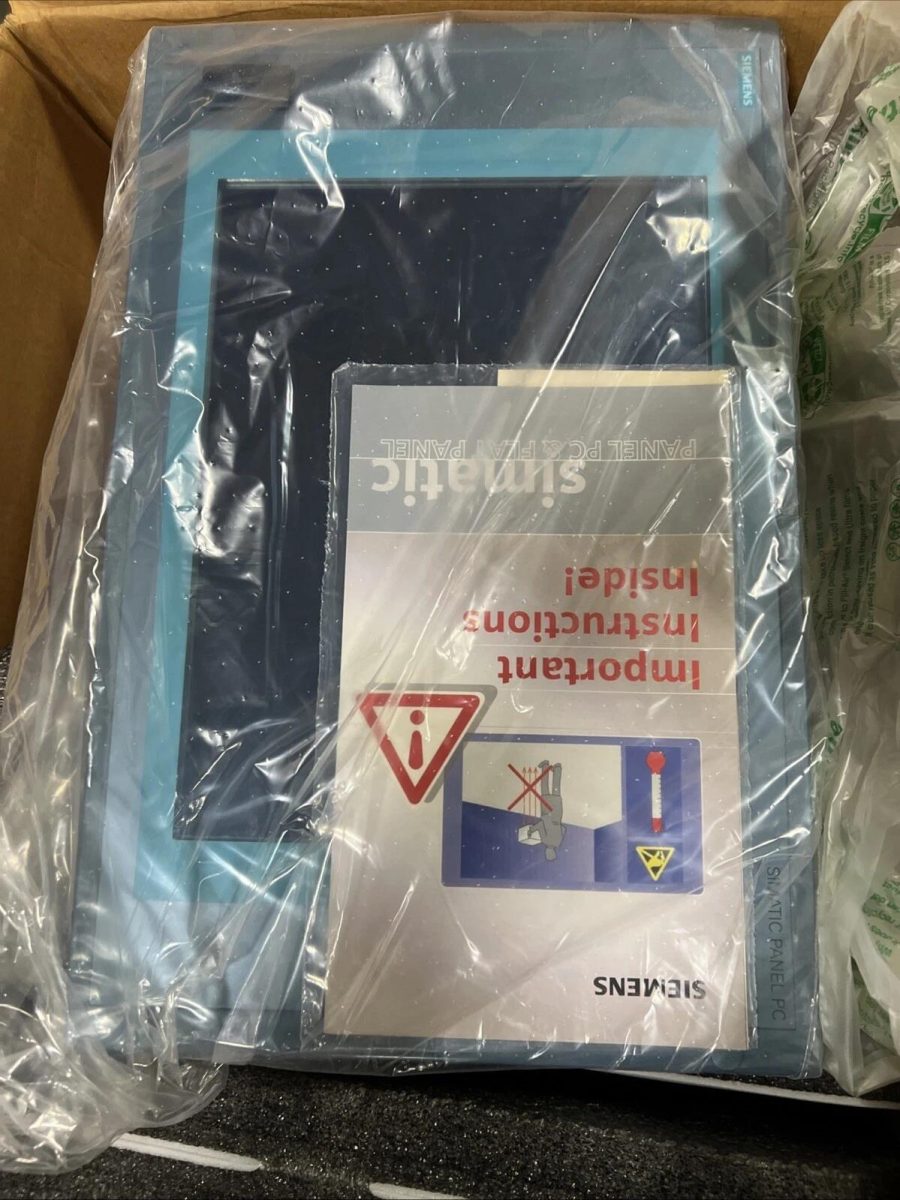

6AV7884-0AD20-4EA0
SIMATIC HMI IPC 477C optional bundle with WinCC flexible 2008/WinAC, 12″ Touch display, 800x 600; 4 USB (back)+1 USB (front) Standard front Core 2 Solo 1.2 GHz, PROFINET (IE); 2x 1 Gbit 2 GB -RAM, DDR3; 2nd CF slot not equipped CF card: 8 GB Windows Embedded Standard 7 pre-installed; (only possible with CF or SSD) without SIMATIC software
| Parameter Item | Technical Specification |
|---|---|
| Market Article Number | 6AV7884-0AD20-4EA0 |
| Product Model | SIMATIC HMI IPC 477C Integrated Panel PC |
| Product Family | SIMATIC HMI / IPC477C Series |
| Display Size | 12-inch resistive touch TFT screen |
| Screen Resolution | 800 × 600 |
| CPU Processor | Intel Core 2 Solo 1.2 GHz |
| System Memory | 2 GB DDR3 RAM |
| Local Storage | 8 GB CF card pre-installed |
| CF Slot Configuration | Main CF slot occupied; second CF slot un-equipped |
| Boot Storage Support | Boot only via CF card or SSD |
| Operating System | Windows Embedded Standard 7 pre-installed |
| Network Interfaces | 2 × 10/100/1000 Mbps Gigabit Ethernet RJ45, integrated PROFINET IE |
| USB Interfaces | 1 sealed front USB port; 4 rear USB ports |
| Software Bundle Option | Compatible with WinCC flexible 2008 & WinAC soft PLC |
| Bundled SIMATIC Software | Not included |
| Power Supply | 24 V DC industrial input |
| Front Protection Class | IP65 sealed touch front panel |
| Rear Enclosure Grade | IP20 |
| Warranty Period | 1 year factory warranty |
| Net Weight | 15.000 kg |
| Origin Country | Germany |
| Minimum Order Unit | 1 Piece |
| Lifecycle Status | Discontinued, no longer available for new orders |
