6AG4104-4HM28-5XC1
SIMATIC IPC547G (Rack PC, 19″, 4HU); Interfaces: 2x USB 3.0 on the front; 2x Intel Gigabit Ethernet, 2x PS/2, Audio on the rear side; 7 slots: 5x PCI Express, 2x PCI, Temperature and Fan monitoring; Watchdog; Card retainer Core i7-6700 (4C/8T, 3.4 (4.0) GHz, 8 MB cache, iAMT); Mainboard: (chipset C236, 1x DVI-D, 2x display ports V1.2, 4x USB 3.0 and 4x USB 2.0 on the rear side, 1x USB 2.0 internal, 1x COM 1; RAID onboard) RAID1, 480 GB (2x 480 GB SSD) in interchangeable insert, hot-swap, front-side 16 GB DDR4 SD-RAM (2x 8 GB), Dual Channel Enclosure painted, 2x 100/240V AC redundant Industrial power supply unit, DVD +/-RW (slim) Serial (COM2)+parallel (LPT) +PCIe x16 graphics card (dual head: 2x VGA or 2x DVI-D), 1 GB Without operating system SIMATIC IPC DiagMonitor V5.0 and Image & Partition V3.5 enclosed Power supply cable Europe
| Category | Specification |
| Order Number | 6AG4104-4HM28-5XC1 |
| Product Name | SIMATIC IPC547G (Rack PC, 19″, 4HU) |
| Front Interfaces | 2x USB 3.0 |
| Rear Interfaces | 2x Intel Gigabit Ethernet; 2x PS/2; Audio (line-in/line-out/mic); 1x DVI-D; 2x DisplayPort V1.2; 4x USB 3.0; 4x USB 2.0; 1x COM 1 (RS-232) |
| Internal Interfaces | 1x USB 2.0 |
| Expansion Slots (Total) | 7 slots: 5x PCI Express, 2x PCI |
| Monitoring & Safety | Temperature and fan monitoring; Watchdog; Card retainer |
| Processor | Intel Core i7-6700 (4 cores / 8 threads, 3.4 GHz base / 4.0 GHz turbo, 8 MB cache, supports Intel iAMT) |
| Chipset / Motherboard | Intel C236; RAID controller (onboard, supports RAID 1) |
| Storage | RAID 1 – 480 GB total (2x 480 GB SATA SSDs) in hot-swap, front-accessible interchangeable insert |
| System Memory (RAM) | 16 GB DDR4 SD-RAM (2x 8 GB), Dual Channel |
| Optical Drive | DVD +/-RW (slim-line) |
| Graphics | Dedicated PCIe x16 graphics card (dual-head capable: 2x VGA or 2x DVI-D), 1 GB dedicated video memory |
| Additional I/O | Serial (COM2) + Parallel (LPT) port (integrated) |
| Chassis | Painted enclosure |
| Power Supply | 2x 100/240V AC redundant industrial power supply units (hot-swap capable) |
| Operating System | None (supplied without OS) |
| Included Software | SIMATIC IPC DiagMonitor V5.0 and Image & Partition V3.5 (enclosed) |

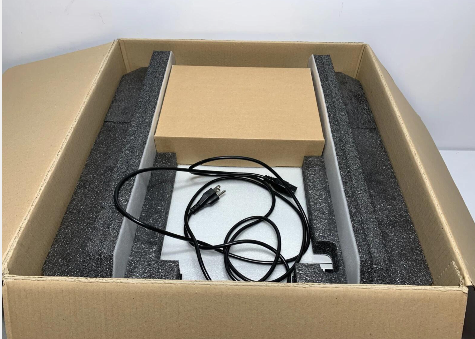

| Accessories | European power supply cable (include |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 17,000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
