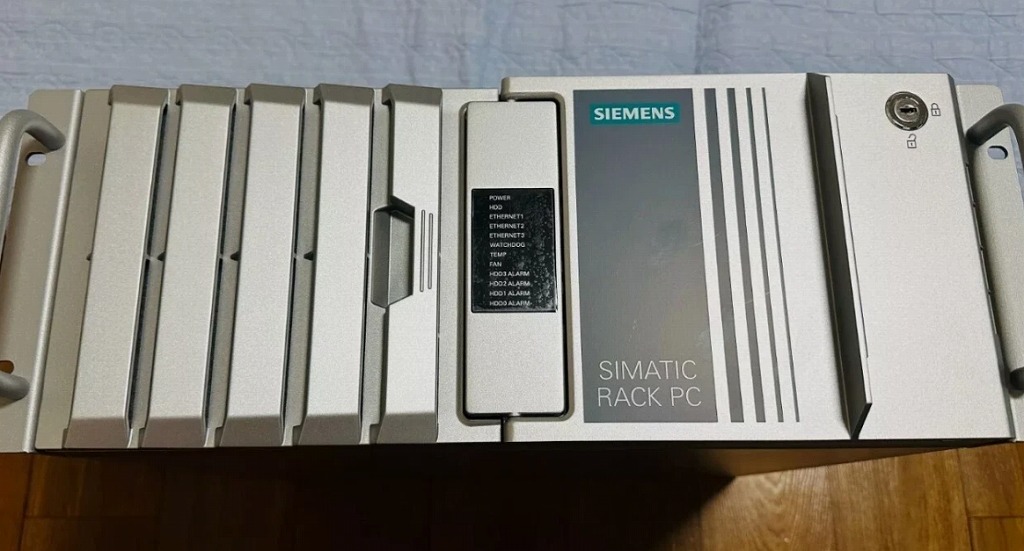

6AG4104-4HA23-2HX1
SIMATIC IPC547G (Rack PC, 19″, 4HU); Interfaces: 2x USB 3.0 on the front; 2x Intel Gigabit Ethernet, 2x PS/2, Audio on the rear side; 7 slots: 5x PCI Express, 2x PCI, Temperature and Fan monitoring; Watchdog; Card retainer Core i7-6700 (4C/8T, 3.4 (4.0) GHz, 8 MB cache, iAMT); Mainboard: (chipset C236, 1x DVI-D, 2x display ports V1.2, 4x USB 3.0 and 4x USB 2.0 on the rear side, 1x USB 2.0 internal, 1x COM 1; RAID onboard) 1x 1 TB HDD, internal, (0.2 g vibration, 1 g shock) 16 GB DDR4 SD-RAM (2x 8 GB), Dual Channel Enclosure blue chromated, 2x 100/240V AC redundant Industrial power supply unit, without removable data storage media PCIe x16 graphics card (dual head: 2x VGA or 2x DVI-D), 1 GB Windows Server 2016 Standard edition incl. 5 clients, 64 bit MUI (en/de/fr/it/es) without expansions (software) Power supply cable Europe
| Order Number | 6AG4104-4HA23-2HX1 |
| Product Name | SIMATIC IPC547G (Rack PC, 19″, 4HU) |
| Front Interfaces | 2x USB 3.0 |
| Rear Interfaces | 2x Intel Gigabit Ethernet, 2x PS/2, Audio |
| Expansion Slots | 7 slots total: 5x PCI Express, 2x PCI |
| Monitoring Functions | Temperature and fan monitoring; Watchdog; Card retainer |
| Processor | Intel Core i7-6700 (4 cores / 8 threads, 3.4 GHz base / 4.0 GHz turbo, 8 MB cache, with Intel iAMT) |
| Motherboard | Chipset C236; 1x DVI-D, 2x DisplayPort V1.2, 4x USB 3.0 (rear), 4x USB 2.0 (rear), 1x USB 2.0 (internal), 1x COM 1; RAID functionality onboard |
| Hard Disk Drive | 1x 1 TB HDD, internal (certified for 0.2 g vibration, 1 g shock) |
| Memory (RAM) | 16 GB DDR4 SDRAM (2x 8 GB), Dual Channel |
| Chassis Finish | Enclosure blue chromated |
| Power Supply | 2x 100/240V AC redundant industrial power supply unit |
| Removable Storage | None (without removable data storage media) |
| Graphics Card | PCIe x16 graphics card (dual head: 2x VGA or 2x DVI-D), 1 GB |
| Operating System | Windows Server 2016 Standard Edition, incl. 5 clients, 64-bit, MUI (en/de/fr/it/es) |
| Software Expansions | None (without expansions) |
| Accessories Included | Power supply cable (Europe) |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 17,000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
