6AG4 104-4AA01-0XX3

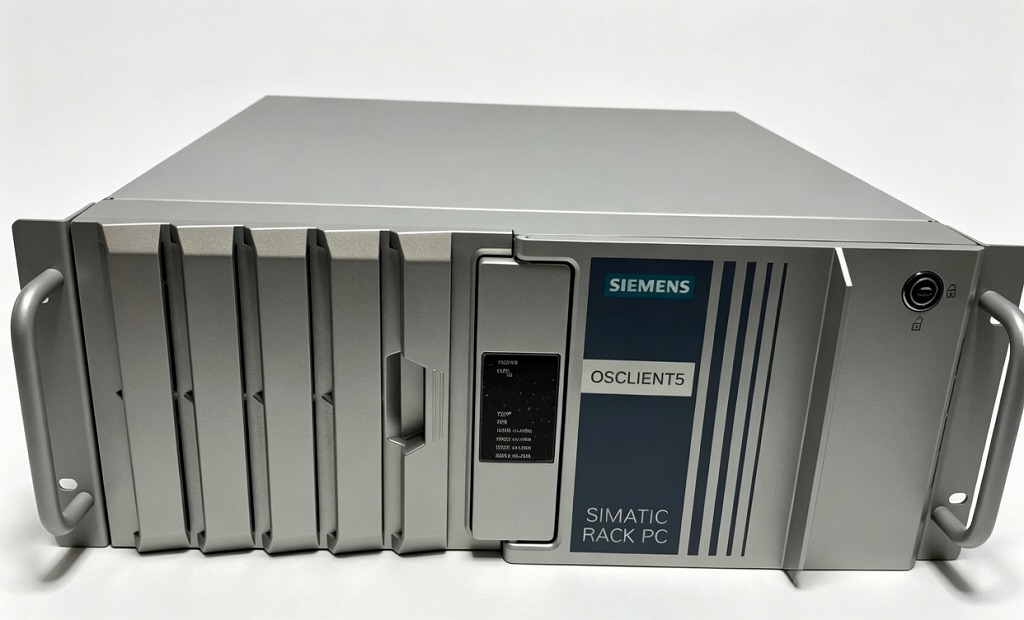

Part Nr: SIEMENS SIMATIC IPC547G , Rack PC, 19″, 4HU 6AG4104-4AA01-0XX3

Brand:   Type:
State:

Buy at DCS-Centers.com, Best price and Big Stock.

6AG4104-4AA01-0XX3

SIMATIC IPC547G (Rack PC, 19″, 4HU); Interfaces: 2x USB 3.0 on the front; 2x Intel Gigabit Ethernet, 2x PS/2, Audio on the rear side; 7 slots: 5x PCI Express, 2x PCI, Temperature and Fan monitoring; Watchdog; Card retainer Pentium G4400 (2C/2T, 3.3 GHz, 3 MB cache), Mainboard: (chipset H110, 1x DVI-D, 1x display port V1.2, 2x USB 3.0 and 4x USB 2.0 on the rear side) 1x 1 TB HDD, internal, (0.2 g vibration, 1 g shock) 4 GB DDR4 SD-RAM (1x 4 GB), Single channel Enclosure blue chromated, 100/240V AC industrial power supply unit, without removable data storage media Graphics onboard Without operating system without expansions (software) Power supply cable China

Category Specification / Detail
Product Designation 6AG4104-4AA01-0XX3
Device Type SIMATIC IPC547G (Rack PC, 19″, 4HU)
Front Interfaces 2x USB 3.0

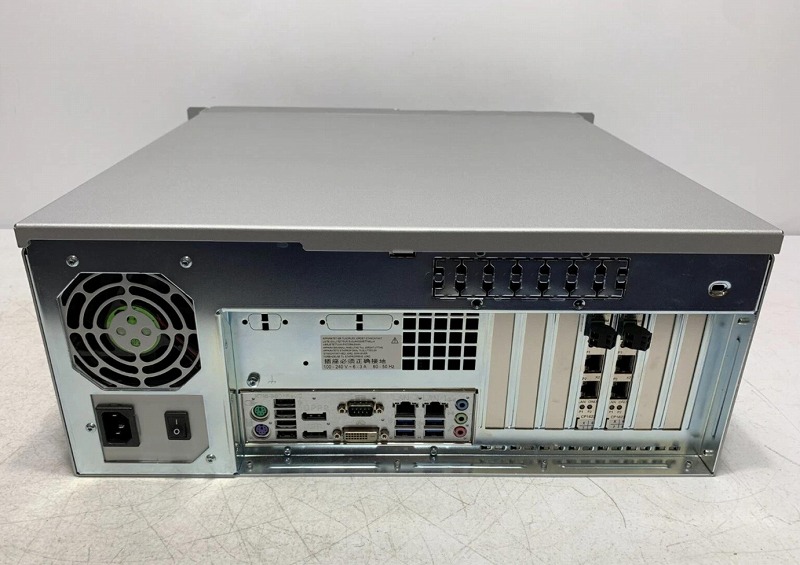

Rear Interfaces 2x Intel Gigabit Ethernet; 2x PS/2; Audio (line-out, line-in, mic-in); 1x DVI-D; 1x DisplayPort v1.2; 2x USB 3.0; 4x USB 2.0
Expansion Slots (Total) 7 slots: 5x PCI Express; 2x PCI
Monitoring & Safety Features Temperature monitoring; Fan monitoring; Watchdog; Card retainer
Processor Intel Pentium G4400 (2 cores / 2 threads, 3.3 GHz, 3 MB L3 cache)
Motherboard / Chipset Chipset Intel H110
Hard Disk Drive (HDD) 1x 1 TB HDD, internal (Shock resistance: 1 g; Vibration resistance: 0.2 g)
System Memory (RAM) 4 GB DDR4 SDRAM (1x 4 GB module), Single-channel configuration
Graphics Onboard graphics (integrated)
Enclosure Finish Blue chromated (passivated)
Power Supply Industrial power supply unit, 100/240V AC (wide-range input)
Removable Storage Media None (not included)
Operating System None (not pre-installed)
Expansion (Software) None (no additional software expansions included)
Power Cable Power supply cable (standard for China)
Protection Level 1 YEAR
Net Weight (kg) 17,000 Kg
Packaging Dimension Not available
Country of origin Germany
Quantity Unit 1 Piece
