6AG4104-3HR22-2AX0

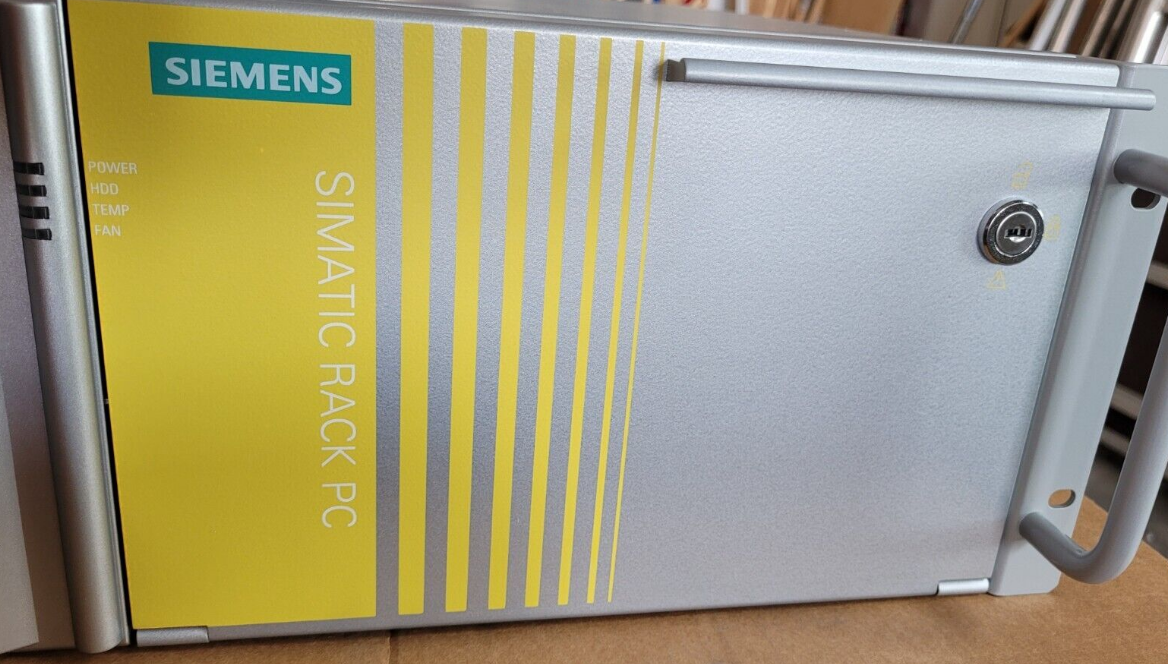

***No longer available*** SIMATIC IPC547E (rack PC, 19″, 4HU); Interfaces: 2x USB 3.0 front, 1x DVI-I, 6x USB 2.0 on the rear side, 2x PS/2, audio; 7 slots: 2x PCIe X16, 1x PCIE X8, 4x PCI; temperature and fan monitoring; Watchdog; card retainer Core I5-4570S (4C/4T, 2.9(3.6) GHz, 6 MB cache, IAMT), 2x Gbit Ethernet, 2x display ports V1.2, 2x USB 3.0 on the rear side, 1x USB 2.0 internal, 1x COM1 RAID1, 1 TB (2x 1 TB HDD, mirror disks) in removable frame; hot-swap, on the front and 1x 240 GB SSD (for operating system) in removable frame; on front; (OS if configured installed on SSD) 4 GB DDR3 SD-RAM (2x 2 GB), Dual Channel Enclosure painted, DVD +/-RW (SLIM) Serial (COM2)+parallel (LPT) Graphics onboard Windows 7 Ultimate MUI (en/de/fr/it/es), 32 bit, SP1 without expansions (software) 100/240V industrial power supply unit; Power supply cable Europe
| Product | |||
| Article Number (Market Facing Number) | 6AG4104-3HR22-2AX0 | ||
| Product Description | ***No longer available*** SIMATIC IPC547E (rack PC, 19″, 4HU); Interfaces: 2x USB 3.0 front, 1x DVI-I, 6x USB 2.0 on the rear side, 2x PS/2, audio; 7 slots: 2x PCIe X16, 1x PCIE X8, 4x PCI; temperature and fan monitoring; Watchdog; card retainer Core I5-4570S (4C/4T, 2.9(3.6) GHz, 6 MB cache, IAMT), 2x Gbit Ethernet, 2x display ports V1.2, 2x USB 3.0 on the rear side, 1x USB 2.0 internal, 1x COM1 RAID1, 1 TB (2x 1 TB HDD, mirror disks) in removable frame; hot-swap, on the front and 1x 240 GB SSD (for operating system) in removable frame; on front; (OS if configured installed on SSD) 4 GB DDR3 SD-RAM (2x 2 GB), Dual Channel Enclosure painted, DVD +/-RW (SLIM) Serial (COM2)+parallel (LPT) Graphics onboard Windows 7 Ultimate MUI (en/de/fr/it/es), 32 bit, SP1 without expansions (software) 100/240V industrial power supply unit; Power supply cable Europe | ||
| Product family | Not available | ||
| Product Lifecycle (PLM) | PM490:Start of final year of support | ||
| PLM Effective Date | Product discontinued since: 01.01.2021 | ||
| Notes |
Product was deleted without replacement
If you need assistance please contact our local Siemens office
|
||
| Price data | |||
| Region Specific PriceGroup / Headquarter Price Group | S20 / 2ET | ||
| List Price | |||
| Customer Price | |||
| Surcharge for Raw Materials | None | ||
| Metal Factor | None | ||
| Delivery information | |||
| Export Control Regulations | ECCN : 5A992 / AL : N | ||
| Standard lead time ex-works | On request | ||
| Net Weight (kg) | 17,000 Kg | ||
| Package size unit of measure | Not available | ||
| Quantity Unit | 1 Piece | ||
| Packaging Quantity | 1 | ||
| Additional Product Information | |||
| EAN | Not available | ||
| UPC | Not available | ||
| Commodity Code | 84715000 | ||
| LKZ_FDB/ CatalogID | IC10-A | ||
| Product Group | 4343 | ||
| Group Code | R133 | ||
| Country of origin | Germany | ||
| Compliance with the substance restrictions according to RoHS directive | Since: 11.09.2013 | ||
| Product class | D: products made to order / customer’s specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) | ||
| WEEE (2012/19/EU) Take-Back Obligation | No | ||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
||
| Classifications | |||
| Not available | |||
