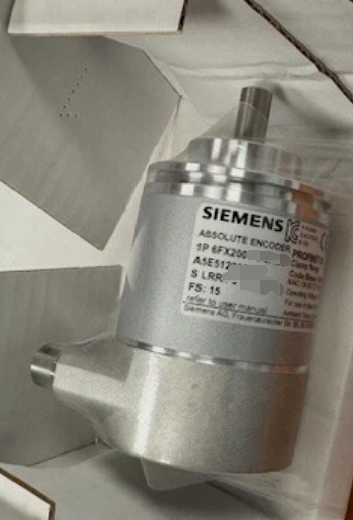

6FX2001-5QN25
| Product Type | Absolute encoder (multi-turn) |
| Part No. (MLFB) | 6FX2001-5QN25 |
| Interface | PROFINET IO with RT (Real-Time) / IRT (Isochronous Real-Time) |
| Operating Voltage (Up) | DC 10 … 30 V |
| Integrated Resolution | 30 bit |
| Parameterizable Resolution | Per revolution: Any 1 … 8192; Total: Any 1 … 8192 x 16384 |
| Transmission Rate | 100 Mbit/s |
| Electrical Connection | PROFINET: 2 x M12 connector, 4-pin (D-coded) Voltage supply: 1 x M12 connector, 4-pin (Radial) |
| Shaft Type | Solid shaft / Clamping flange |
| Shaft Diameter / Length | 10 mm / 20 mm |
| Max. Mechanical Speed | 6,000 rpm |
| Max. Speed with accuracy (±1 LSB) | 5,800 rpm |
| Angular Acceleration (max.) | 100,000 rad/s² |
| Load Capacity (Radial/Axial) | Static (n ≤ 6000 rpm): 110 N (radial) / 40 N (axial) Dynamic (n > 6000 rpm): 20 N (radial) / 10 N (axial) |
| Rotor Moment of Inertia | 0.0000019 kgm² |
| Vibration Resistance | 100 m/s² (55 … 2000 Hz) acc. to EN 60068-2-6 |
| Shock Resistance | 1,000 m/s² (6 ms) acc. to EN 60068-2-27 |
| Degree of Protection (IP Rating) | Housing: IP67; Shaft entry: IP64 |
| Ambient Temperature (Operation) | -40 … +85 °C |
| Starting / Friction Torque (20°C) | ≤ 0.01 Nm |
| Net Weight | Approx. 0.43 – 0.60 kg |
| Accuracy | ± 79″ (± 1 LSB at 8192 steps) |
| Approvals / Standards | CE, cULus, EMC Directive 2014/30/EC |
| Product Lifecycle | PM300 (Active Product) |
