6FX2 001-5QN13

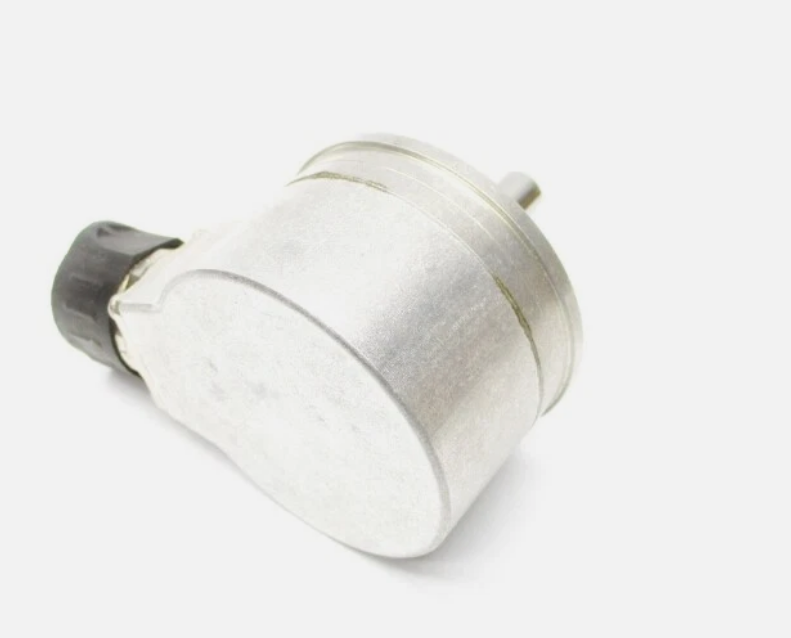

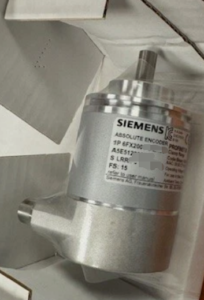

Part Nr: SIEMENS absolute encoder 6FX2001-5QN13 single-turn 16-bit with PROFINET

Brand:   Type:
State:

Inquiry Now!

Buy at DCS-Centers.com, Best price and Big Stock.

Part Number

6FX2001-5QN13

absolute encoder 6FX2001-5QN13 single-turn 16-bit with PROFINET operating voltage 10-30 V clamping flange shaft 10 mm plug M12 radial FS15 maximum ambient temperature 85 °C

General Information
Manufacturer Siemens
Part Number 6FX2001-5QN13
Product Type Absolute Rotary Encoder
Type Single-turn
Application Motion control for SINUMERIK, SIMOTION, SIMATIC, SINAMICS
Electrical Data
Operating Voltage DC 10 … 30 V
Interface PROFINET IO with RT (Real-Time) and IRT (Isochronous Real-Time)
Transmission Rate 100 Mbit/s
Short-circuit Protection Yes
Performance / Resolution
Measuring Principle Optoelectronic
Resolution 16 bit (Single-turn)
Code Type Gray code
Telegram Standard frames 81 to 89, Siemens frames 860/862 (PNO Encoder Profile V4.1)
Parameterizability Preset, Counting direction (Yes)
Mechanical Data
Shaft Type Solid shaft
Mounting Type Clamp flange
Shaft Diameter 10 mm
Shaft Length 20 mm
Max. Rotational Speed 12,000 rpm
Max. Angular Acceleration 10⁶ rad/s² (calculated from 1,000 m/s² shock spec)
Rotor Moment of Inertia Approx. 0.4 kg·cm²
Starting Torque (at 20°C) ≤ 0.01 Nm
Environmental & Protection
Degree of Protection (Housing) IP67
Degree of Protection (Shaft) IP64
Operating Temperature -40 … +85 °C
Vibration Resistance (55-2000 Hz) 100 m/s² (EN 60068-2-6)
Shock Resistance (6 ms) 1,000 m/s² (EN 60068-2-27)
Connection Data
Electrical Connection 2 x M12 connector (4-pin) for PROFINET, 1 x M12 connector (4-pin) for power
Connection Orientation Radial
Physical Characteristics
Net Weight Approx. 0.4 kg
Country of Origin Poland
