6FX20015FN25



Part Nr: Siemens absolute encoder 6FX2001-5FN25 multi-turn 30-bit

Brand:   Type:
State:

Inquiry Now!

Buy at DCS-Centers.com, Best price and Big Stock.

Part Number

6FX2001-5FN25

absolute encoder 6FX2001-5FN25 multi-turn 30-bit with PROFINET operating voltage 10-30 V synchronous flange/ shaft 6 mm plug M12 radial FS15 maximum ambient temperature 85 °C

Product Type Absolute Encoder (Multiturn)
Part Number 6FX2001-5FN25
Interface PROFINET IO with RT (Real-Time) / IRT (Isochronous Real-Time)
Operating Voltage (Up) DC 10 … 30 V
Transmission Rate 100 Mbit/s
Resolution (Total) 30 bit (Singleturn: 13 bit / Multiturn: 27 bit)
Telegram Types PNO Encoder Profile V4.1 (Class 1-4), Standard 81-89, Siemens 860/862
Coding (Scanning) Gray code
Mechanical Design Synchro flange / Solid shaft (6 mm diameter, 10 mm length)
Electrical Connection 2 x M12 connector (4-pin, for PROFINET ports) & 1 x M12 connector (4-pin, for power supply) — Radial
Maximum Mechanical Speed 6,000 1/min
Accuracy ± 79″ (± 1 LSB at 8192 steps)
Starting Torque (at 20°C) ≤ 0.01 Nm
Rotor Moment of Inertia 0.0000019 kgm²
Max. Angular Acceleration 100,000 rad/s²
Shaft Load (n ≤ 6000 rpm) Axial: 40 N / Radial: 110 N
Shaft Load (n > 6000 rpm) Axial: 10 N / Radial: 20 N
Vibration Resistance 100 m/s² (55-2000 Hz) per EN 60068-2-6
Shock Resistance 1,000 m/s² (6 ms) per EN 60068-2-27
Ingress Protection Housing: IP67 / Shaft inlet: IP64
Operating Temperature -40 … +85 °C
Standards / Conformity CE, cULus, EMC Directive 2014/30/EU
Net Weight 0,546 Kg

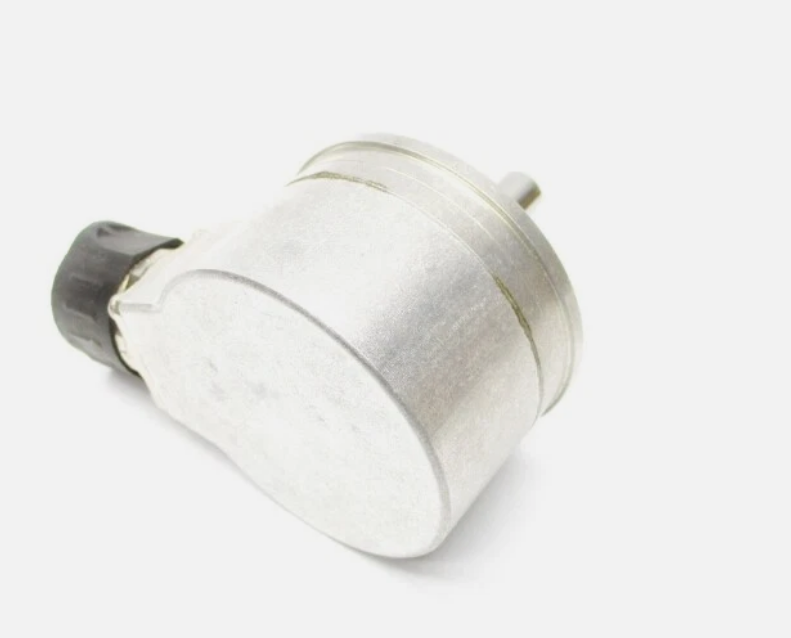

parts photo album​
