| Parameter | Specification |
|---|---|
| Model Number | 6SL3210‑1PH20‑1UL0 |
| Product Type | SINAMICS PM240‑2 Power Module |
| Series | SINAMICS G120 |
| Frame Size | FSA |
| Input Side | 3‑phase AC |
| Line Voltage | 500 … 690 V ±10 % |
| Line Frequency | 47 … 63 Hz |
| Output Side | 3‑phase AC |
| Rated Power LO (IEC‑690V) | 5.5 kW / 7.5 HP |
| Rated Power HO (IEC‑690V) | 4.0 kW / 5.0 HP |
| Rated Output Current LO | 11.0 A |
| Rated Output Current HO | 9.5 A |
| Max Output Current | 16.5 A |
| Pulse Frequency | 4 kHz (default) |
| Output Frequency Vector Control | 0 … 200 Hz |
| Output Frequency V/f Control | 0 … 550 Hz |
| Overload‑Low Overload(LO) | 110 % for 57 s, 150 % for 3 s, cycle 300 s |
| Overload‑High Overload(HO) | 150 % for 57 s, 200 % for 3 s, cycle 300 s |
| Built‑in Braking Chopper | Yes, external braking resistor required |
| Integrated Line Filter | No |
| Control Unit Compatibility | CU240E‑2, CU240F‑2, CU250S‑2 series |
| Safety Integrated | STO, SS1, SLS, SDI, SSM; SIL2 / PL d |
| Cooling | Internal air cooling |
| Dimensions (W×H×D) | 73 mm × 196 mm × 165 mm |
| Weight | 1.4 kg |
| Operating Temperature LO | ‑20 °C … +40 °C |
| Operating Temperature HO | ‑20 °C … +50 °C |
| Storage / Transport Temperature | ‑40 °C … +70 °C |
| Protection Class | IP20 |
| Certifications | CE, UL, cUL, RCM, SEMI F47 |
| Efficiency Class | IE2 |
| Country of Origin | Germany |

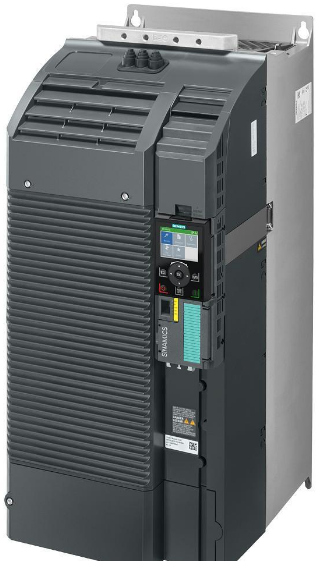

SIEMENS 6SL3210-1PH20-1UL0 SINAMICS G120
