| Category | Item | Standard Parameter Value |
|---|---|---|
| Basic Identification | Full MLFB Order Number | 6AV7241-7EB18-0FA0 |

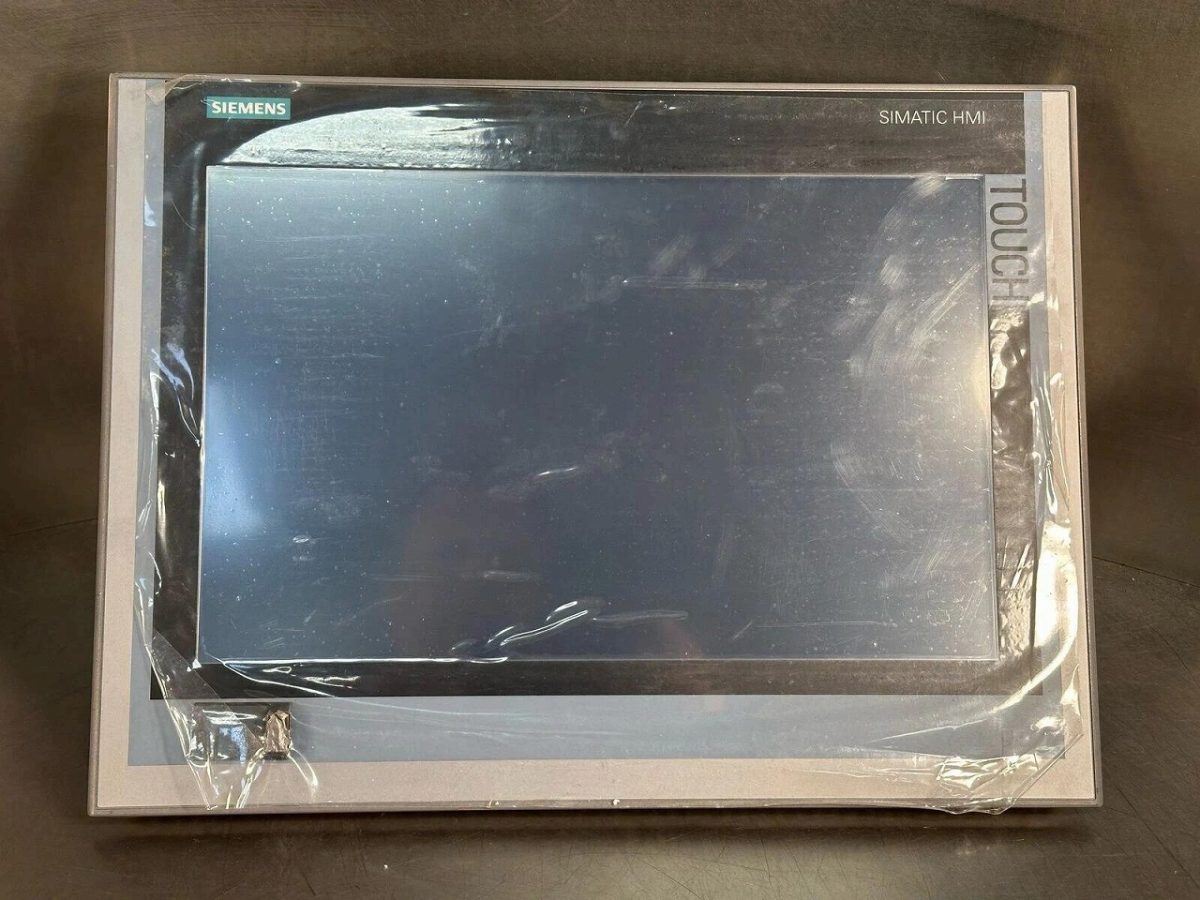

| Product Designation | SIMATIC IPC 477E | |
| Manufacturer | Siemens AG, Germany | |
| Lifecycle Status | Active standard production product | |
| Display & Multitouch Module | Screen Diagonal | 22-inch industrial TFT LCD (22″ nominal) |
| Native Resolution | Full HD 1920 × 1080 pixels | |
| Touch Technology | Capacitive multi-touch (5-point touch, glove support) | |
| Front Protection Rating | IP65 (dustproof, splash-resistant) | |
| Rear Chassis Protection | IP20 (cabinet flush mounting only) | |
| Standard Luminance | 350 cd/m² industrial brightness | |
| Backlight MTBF @25°C | 60,000 hours | |
| Core Hardware Platform | CPU (Code 7E) | Intel Xeon E3-1505L v5, 4C/8T, Base 2.0 GHz / Turbo 2.8 GHz, 8 MB L3 Cache, TDP=25W, iAMT supported |
| Chipset | Intel C236 embedded chipset | |
| Integrated Graphics | Intel HD P530 Graphics, dual independent display output | |
| System RAM (Code B18) | 8 GB DDR4 ECC industrial SO-DIMM with NVRAM, max expandable to 16 GB | |
| Cooling Architecture | Fully sealed fanless passive aluminum heat dissipation, zero maintenance | |
| Storage Configuration (Suffix F) | Main Internal Storage | 240 GB industrial SATA SSD (fixed onboard, non-replaceable front access) |
| Expansion Storage Slot | 1 × CFast slot (external bootable media, CFast card sold separately) | |
| Optical Drive | Not equipped, external USB optical drive optional | |
| Onboard Communication Interfaces | Industrial Ethernet | 3 × Gigabit RJ45 (10/100/1000 Mbps), PROFINET / Industrial Ethernet compliant |
| Serial Ports | No RS232 / RS485 COM ports pre-installed | |
| USB Interfaces | 4 × rear USB 3.0 Type-A; 1 × front service USB 2.0 | |
| External Video Output | 2 × DisplayPort (DP++) for secondary/tertiary monitor expansion | |
| Expansion Slot | 1 × PCIe x4 expansion slot (optional add-on card) | |
| Operating System (Suffix 0) | Factory Pre-installed OS | Windows 10 IoT Enterprise 2016 LTSB 64-bit, dedicated Xeon optimized image |
| Visualization Runtime (Suffix A0) | SIMATIC Software | No WinCC RT Advanced / Professional runtime pre-installed |
| Power Supply Specifications | Nominal Input Voltage | 24 V DC industrial power supply |
| Allowed Voltage Tolerance | 19.2 V DC ~ 28.8 V DC (-20% / +20%) | |
| Max Full-Load Power Consumption | 58 W | |
| Mechanical Dimensions | Front Panel W × H | 515 mm × 335 mm |
| Cabinet Cutout Size (W × H) | 496 mm × 316 mm | |
| Overall Installation Depth | 76 mm | |
| Approximate Net Weight | 6.8 kg | |
| Environmental Ratings | Continuous Operating Temp (Vertical Mount) | 0 °C ~ +45 °C (derate performance above +40°C) |
| Storage & Transport Temperature | -20 °C ~ +60 °C | |
| Relative Humidity | 5% ~ 90% RH, non-condensing | |
| Max Operation Altitude | ≤ 3,000 m above sea level | |
| Vibration Compliance | IEC 60068-2-6 | |
| Shock Compliance | IEC 60068-2-27 | |
| Certifications & Compliance | Global Approvals | CE, cULus, UL508, FCC Class A, RCM, KC, EAC; GL / ABS / DNV marine certification |
