6AG4104-4GF16-0DX1

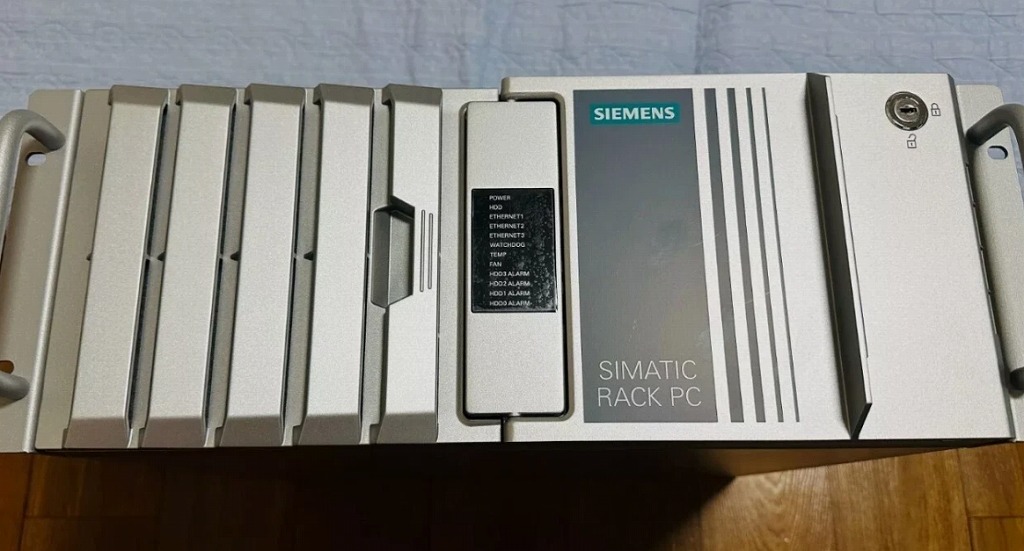

SIMATIC IPC547G (Rack PC, 19″, 4HU); Interfaces: 2x USB 3.0 on the front; 2x Intel Gigabit Ethernet, 2x PS/2, Audio on the rear side; 7 slots: 5x PCI Express, 2x PCI, Temperature and Fan monitoring; Watchdog; Card retainer Core i5-6500 (4C/4T, 3.2 (3.6) GHz, 6 MB cache, iAMT); Mainboard: (chipset C236, 1x DVI-D, 2x display ports V1.2, 4x USB 3.0 and 4x USB 2.0 on the rear side, 1x USB 2.0 internal, 1x COM 1; RAID onboard) RAID1, 1 TB (2x 1 TB HDD) internal (0.2 g vibration, 1 g shock) 8 GB DDR4 SD-RAM (2x 4 GB), Dual Channel Enclosure painted, 100/240V AC industrial power supply unit, DVD +/-RW (slim) Graphics onboard Windows 10 Enterprise 2016 LTSB MUI (en/de/fr/it/es), 64 bit for Pentium/Core i5 without expansions (software) Power supply cable Europe
| Order Number | 6AG4104-4GF16-0DX1 |
| Product Name | SIMATIC IPC547G (Rack PC, 19″, 4HU) |
| Front Interfaces | 2x USB 3.0 |
| Rear Interfaces | 2x Intel Gigabit Ethernet, 2x PS/2, Audio |
| Expansion Slots | 7 slots total: 5x PCI Express, 2x PCI |
| Monitoring & Safety | Temperature and Fan monitoring; Watchdog; Card retainer |
| Processor | Core i5-6500 (4 cores / 4 threads, 3.2 GHz base / 3.6 GHz turbo, 6 MB cache, iAMT) |
| Motherboard / Chipset | Chipset C236; 1x DVI-D, 2x DisplayPort V1.2, 4x USB 3.0 (rear), 4x USB 2.0 (rear), 1x USB 2.0 (internal), 1x COM 1; RAID onboard |
| RAID Configuration | RAID1 |
| Internal Storage | 1 TB (2x 1 TB HDD) |
| Shock & Vibration Tolerance (Storage) | 0.2 g vibration, 1 g shock |
| Memory (RAM) | 8 GB DDR4 SDRAM (2x 4 GB), Dual Channel |
| Chassis Finish | Enclosure painted |
| Power Supply | 100/240V AC industrial power supply unit |
| Optical Drive | DVD +/-RW (slim) |
| Graphics | Graphics onboard |
| Operating System | Windows 10 Enterprise 2016 LTSB MUI (English / German / French / Italian / Spanish), 64-bit, for Pentium/Core i5 without expansions (software) |
| Accessories Included | Power supply cable (Europe) |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 17,000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
