Catalog Number Breakdown (20F1AND248AA0NNNNN)
To ensure the accuracy of the data, the part number decodes as follows:
-
20F: PowerFlex 753
-
1: 480V AC / 650V DC
-
A: AC Input with Precharge (No DC Terminals)
-
N: No Galvanic Isolation / No DC Terminals
-
D: DB Transistor (Dynamic Braking) Included
-
248: 248 Amps (Rated Current)
-
A: Frame Size 6
-
A: Filtered, Jumper Out (EMC)
-
0: Blank (No HIM – Human Interface Module)
-
NNNNN: Standard Hardware (No Modifications)

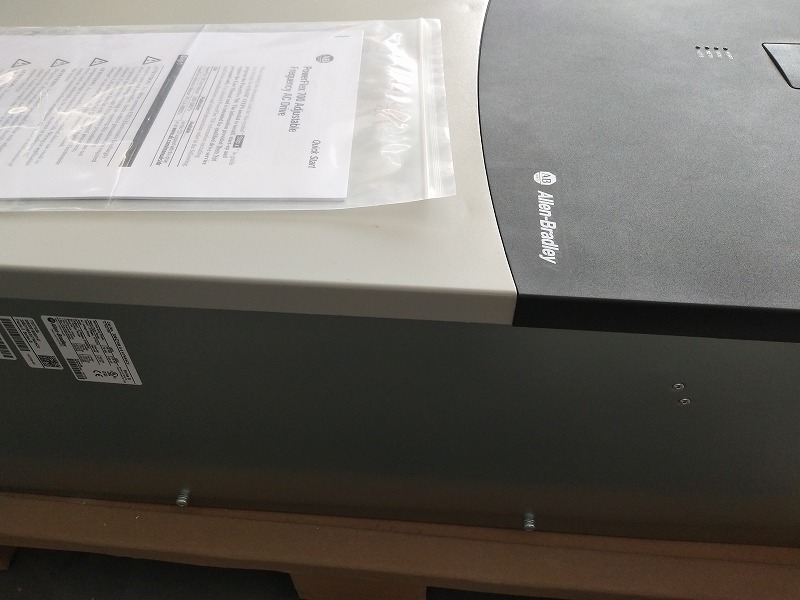

PowerFlex Air Cooled 753 AC Drive
| Parameter | Specification | Details / Notes |
| Manufacturer | Allen-Bradley / Rockwell Automation | PowerFlex 753 Series |
| Part Number | 20F1AND248AA0NNNNN | Full catalog number |
| Product Type | AC Drive (Variable Frequency Drive) | High performance for general purpose applications |
| Input Voltage | 480V AC, 3-Phase | 380–480V AC range; 650V DC Bus |
| Input Phases | 3 | 3PH input / 3PH output |
| Output Current | 248 Amps | Continuous output current |
| Motor Power (ND) | 200 HP (150 kW) | Normal Duty – Variable Torque (Fan/Pump) |
| Motor Power (HD) | 150 HP (110 kW) | Heavy Duty – Constant Torque |
| Frame Size | Frame 6 | Physical construction size |
| Enclosure Rating | IP20 / IP00 | Open Type / Chassis. Designed for panel mounting (Indoor) |
| Cooling Method | Forced Air Cooled | Internal fan required for cooling |
| Braking | DB Transistor (Internal) | Includes Dynamic Braking Transistor (requires external resistor) |
| EMC Filtering | Filtered (Jumper Out) | EMI filter installed; Jumper removed for specific ground leakage compliance |
| Interface (HIM) | Blank (No HIM) | No local display/keypad module installed |
| I/O Capacity | Standard Embedded I/O | Includes 3 expansion slots for additional modules |
| Overload Capacity | 110% for 60 sec / 150% for 3 sec | Suitable for high starting torque loads |
| Operating Temp | 0 °C to 50 °C (32 °F to 122 °F) | Requires derating above specific altitudes/temps |
| Weight | Approx. 90.7 kg (200 lbs) | Shipping weight is slightly higher |
