| Item | Parameter |
|---|---|
| Article Number | 6AV7241‑5LB07‑0GA0 |
| Product Family | SIMATIC IPC477E |
| Device Type | Fan‑less Industrial Panel PC |
| Display Size | 22 inch (21.5″ physical) |
| Display Resolution | Full‑HD 1920 × 1080 |
| Touch Technology | Projective‑capacitive Multi‑Touch, glove‑operable |
| Front Protection Rating | IP65 |
| Rear Chassis Protection | IP20 |
| Processor | Intel Core i5‑6442EQ 4C/4T,1.9 GHz‑2.7 GHz,6 MB Cache,iAMT |
| Main Memory | 8 GB DDR4 |
| Ethernet | 3 × 10/100/1000 Mbps RJ45 (PROFINET / Industrial Ethernet) |
| USB Interface | 4 × USB ports (rear side only, no front USB) |
| Serial Port | Without RS232 / RS485 |
| Expansion Slot | Without PCIe slot |
| Power Supply | 24 V DC |
| Cooling Method | Fan‑less passive convection cooling |
| Mounting | Panel mount, support horizontal / portrait installation |
| Operating Temperature | 0 °C ~ +45 °C |
| Storage Temperature | ‑20 °C ~ +60 °C |
| Relative Humidity | 5%‑80%, non‑condensing |
| Net Weight | 8.200 Kg |
| Country of Origin | Germany |
Long Description

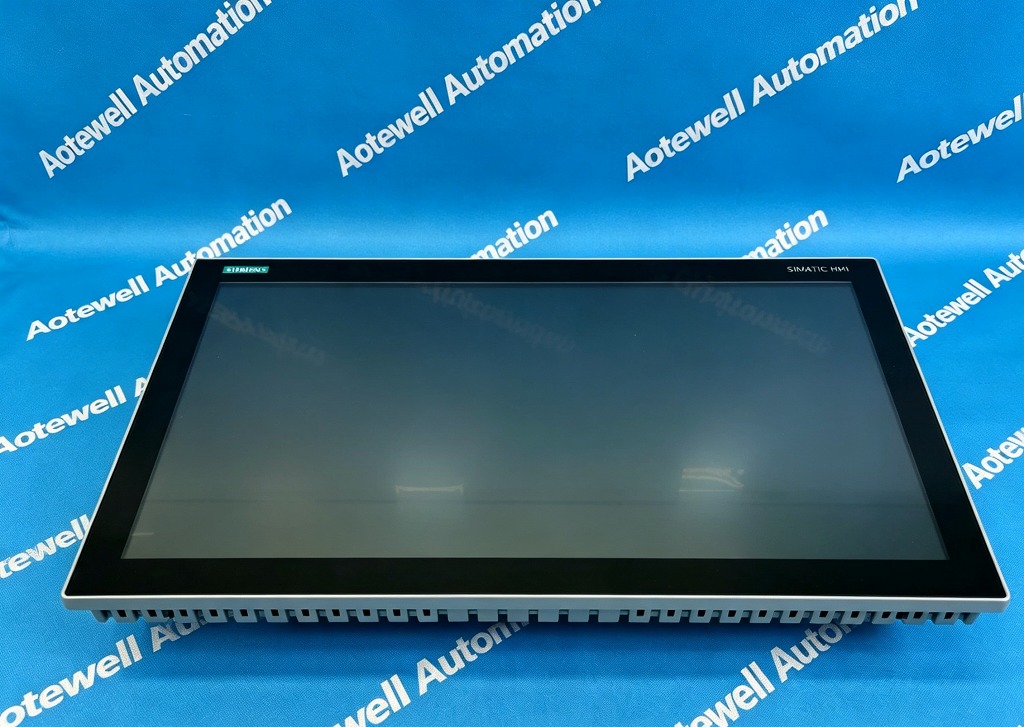

6AV7241‑5LB07‑0GA0 is the SIMATIC IPC477E compact fanless panel PC designed for harsh industrial cabinet‑mount operation. Equipped with a 22‑inch (21.5” physical) TFT‑LCD Full‑HD display with 1920 × 1080 resolution and projective‑capacitive multi‑touch input supporting multi‑finger gesture operation and glove‑touch capability, the front face achieves IP65 protection against dust and splash water, while the rear housing is IP20 rated for installation inside control cabinets.
Powered by Intel Core i5‑6442EQ quad‑core embedded processor (4C/4T, base 1.9 GHz, turbo‑boost up to 2.7 GHz, 6 MB L3 cache with Intel AMT), the unit is fitted with 8 GB DDR4 main memory, delivering stable computing performance for visualization, process data logging, HMI runtime and light image‑processing workloads. This variant provides three independent Gigabit Ethernet RJ45 interfaces for PROFINET and industrial Ethernet communication, 4 rear‑mounted USB ports, without front‑panel USB, without RS232/RS485 serial interfaces and without PCIe expansion slot.
Power supply supports 24 V DC industrial power input. The thermal design adopts fan‑less passive convection cooling, eliminating fan‑caused wear, dust accumulation and noise, improving long‑term reliability for continuous 24‑7 factory operation. The device supports horizontal or portrait panel mounting inside electrical cabinets. It runs Windows operating system for industrial use, compatible with Siemens TIA Portal, WinCC runtime and third‑party industrial software platforms, widely used as integrated HMI‑IPC unit for production‑site operation and monitoringSiemens In…
