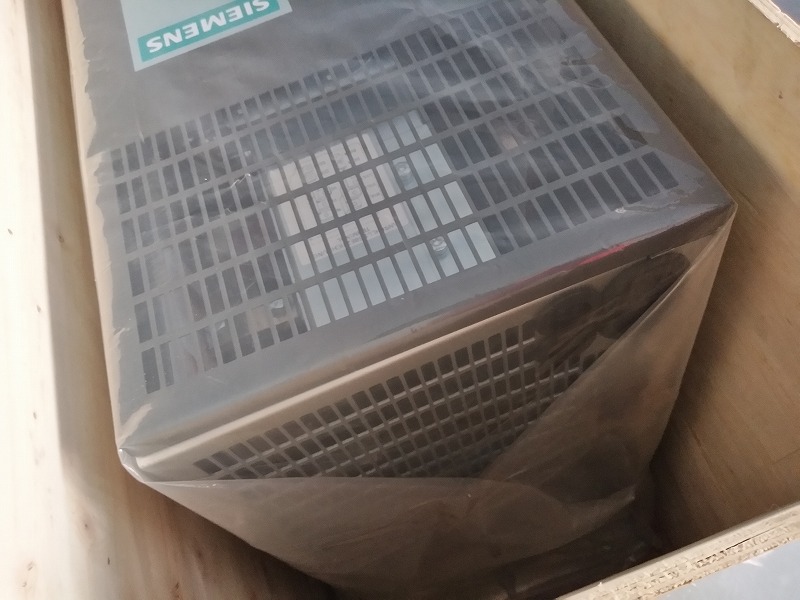

6SL3310-1TE33-8AA3
SINAMICS S120 CONVERTER POWER MODULE 3AC 380-480V, 50/60HZ, 380A (200 KW) INTERNAL AIR COOLING FRAME SIZE: CHASSIS SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE AND MOUNTING PLATE FOR CU310
| Parameter | Specification |
|---|---|
| Order Number | 6SL3310-1TE33-8AA3 |
| Product Family | SINAMICS S120 |
| Type | Single Motor Module, Chassis (PM340) |
| Cooling | Internal Air Cooling (integrated fan) |
| Input Voltage (AC) | 3AC 380–480 V (‑15% / +10%) |
| Input Frequency | 47–63 Hz |
| DC Link Voltage | DC 510–720 V |
| Rated Output Current (IL) | 380 A (400 V) |
| Base‑load Current (IL) | 370 A |
| Base‑load Current (IH) | 340 A |
| Rated Output Power (IL, 400 V) | 200 kW |
| Rated Output Power (IH, 400 V) | 160 kW |
| Output Frequency | 0–550 Hz (V/f, Vector, Servo) |
| Overload Capability | 150% / 60 s; 110% / 240 s |
| Control Interface | DRIVE‑CLiQ (4 ports) |
| Control Unit Compatibility | CU310‑2 (DP/PN), CU320‑2, D4x5‑2 |
| Included Accessories | DRIVE‑CLiQ cable + mounting plate for CU310‑2 |
| Brake Chopper | Not integrated (external required) |
| Protection Class | IP20 |
| Dimensions (W×H×D) | 326 × 1533 × 545 mm |
| Net Weight | 162 kg |
| Operating Temperature | 0 °C to +40 °C (derate >40 °C: 1%/°C) |
| Storage Temperature | −25 °C to +55 °C |
| Relative Humidity | ≤80% (non‑condensing) |
| Altitude | ≤1000 m (derate >1000 m) |
| Safety Features | STO (Safe Torque Off), SS1, SLS, etc. |
| Motor Connection | M10 screw terminals |
| PE Terminals | 3 × PE |
