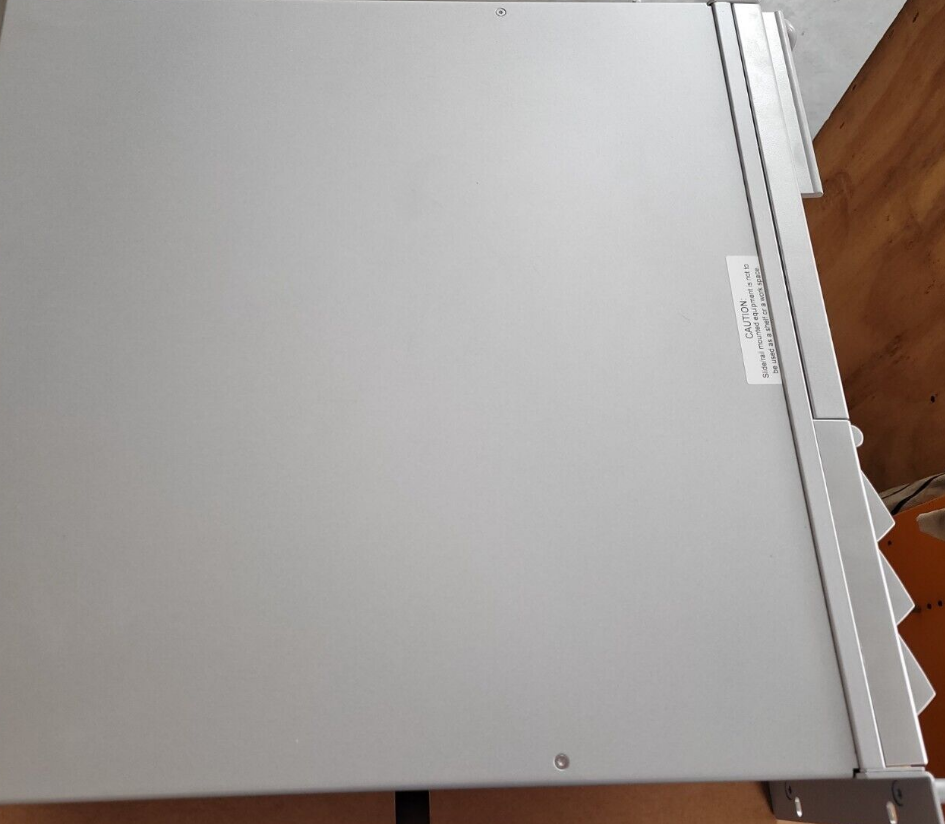

6ES7660-8DD02-1DE1
| Order Number | 6ES7660-8DD02-1DE1 |
| Product Designation | SIMATIC Process Control System IPC547J |
| Chassis Type | Rack PC, 19″, 4 U |
| Rear Interfaces | 3x Gbit LAN (RJ45); 1x DVI-D; 2x DisplayPort; 1x COM (serial); Audio ports; 6x USB 3.1 Gen. 2 (2x Type-C, 4x Type-A) |
| Front Interfaces | 2x USB 3.1 Gen. 1 (Type-A) |
| Internal Interfaces | 2x USB 2.0 |
| Expansion Slots (total) | 7 slots: 5x PCIe, 2x PCI |
| Monitoring & Mechanical | Internal temperature and fan monitoring; Watchdog; Card retainer |
| Processor (CPU) | Intel Core i7-10700E (8 cores / 16 threads, base freq. 2.9 GHz, turbo freq. 4.5 GHz, 16 MB cache) |
| Motherboard / Chipset | Motherboard with Intel W480E Chipset; supports Intel iAMT |
| System Role / Licensing | PCS 7 Engineering Station / OS Single Station; OS Client |
| Storage Configuration (RAID) | RAID1 (mirrored); 2x 4 TB HDD [Enterprise Class], 3.5″ SATA |
| Drive Mounting | Supports internal installation |
| Mechanical Resilience | Vibration resistance: 0.5 G; Shock resistance: 5 g |
| System Memory (RAM) | 32 GB DDR4 SDRAM (2x 16 GB modules), Dual-channel configuration |
| Preinstalled Automation Software | PCS 7 V9.1 SP2 |
| Preinstalled Operating System | Windows 10 IoT Enterprise 2019 LTSC, 64-bit, Multilingual User Interface (MUI) – supports English, German, French, Italian, Spanish, and Chinese |
| Recovery Media | Supplied with restore USB flash drive |
| Processor Compatibility Note | System configured for Core i7 / Xeon processors |
| Enclosure Finish | Blue chromated (passivated) |
| Pre-installed Communication Module | Industrial Ethernet (CP1623) – occupies 1 PCIe slot |
| Power Supply | 100/240 V AC industrial power supply unit (auto-ranging) |
| Power Cord | Europe-standard power supply cord |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 17.00 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
