| Item | Parameter Value |
|---|---|
| MLFB Order Number | 6AV7882-0CB30-7CA0 |

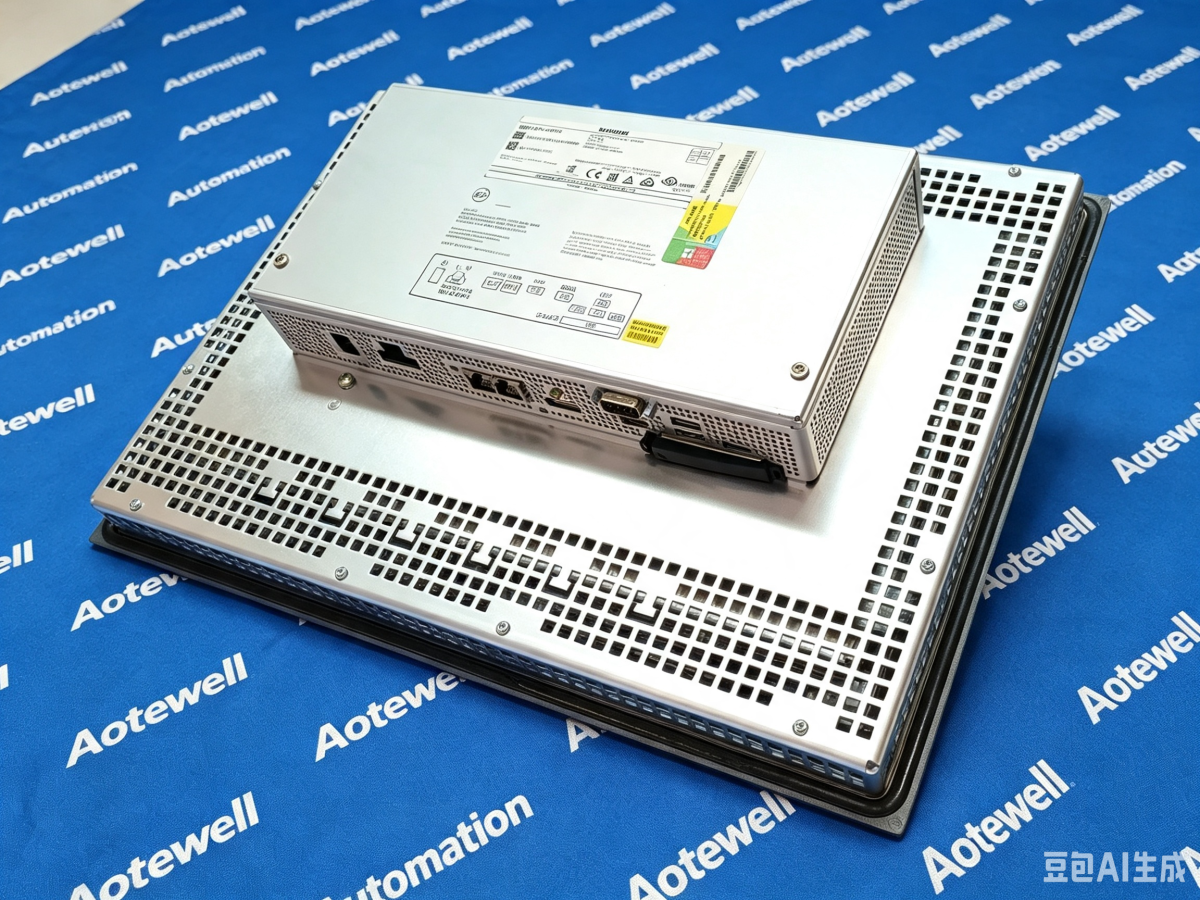

| Product Series | SIMATIC IPC277E Nanopanel Industrial Panel PC |
| Display | 12″ TFT LCD, 1280 × 800 WXGA, analog resistive single touch |
| Front Protection Rating | IP65 / NEMA 4X |
| Rear Housing Protection | IP20 |
| Backlight MTBF @ 25°C | 80,000 hours |
| Cooling Mode | Fanless passive cooling |
| Processor | Intel Celeron N2930, 4 Cores / 4 Threads, integrated TPM chip |
| CPU Performance | Base 1.83 GHz, Burst 2.16 GHz, L2 Cache 2 MB |
| Integrated Graphics | Intel HD Graphics |
| System RAM | 8 GB DDR3L, maximum non-upgradable 8 GB |
| Internal Storage | 240 GB replaceable industrial SATA SSD |
| Expansion Slot | CFast memory card slot for data logging & backup |
| Ethernet Ports | 2 × Gigabit RJ45 (10/100/1000 Mbps, PROFINET compliant) |
| USB Interfaces | 1 × USB3.0 (rear); 3 × USB2.0 (2 rear + 1 front service port) |
| Serial Interface | 1 × COM1, software configurable RS232 / RS422 / RS485 |
| External Video Output | 1 × DisplayPort |
| Operating System | Windows 10 IoT Enterprise 2016 LTSB, 64-bit, Multi-language MUI (EN/DE/FR/IT/ES) |
| Pre-installed SIMATIC Runtime Software | None |
| Rated Input Power | 24 V DC, allowable range: 19.2 V ~ 28.8 V DC |
| Max Power Consumption (Full Load) | 32 W |
| Front Panel Dimension (W × H) | 330 mm × 241 mm |
| Overall Depth | 73 mm |
| Panel Mount Cutout (W × H) | 310 mm × 221 mm |
| Approximate Net Weight | 2.75 kg |
| Vertical Operating Temperature | 0 °C ~ +50 °C |
| Storage & Transport Temperature | -20 °C ~ +60 °C |
| Ambient Humidity | 5% ~ 90% RH, non-condensing |
| Vibration Standard | Compliant with IEC 60068-2-6 |
| Shock Standard | Compliant with IEC 60068-2-27 (15g peak, 11ms duration) |
| Certifications | CE, cULus, UKCA, RoHS |
| ECCN Export Control Code | 5A992 |
| Country of Origin | Germany |
| Lifecycle Status | PM400 series, phase-out announced since 31.07.2025 |
