6ES7660-8DC52-2GF5
| Order Number | 6ES7660-8DC52-2GF5 |

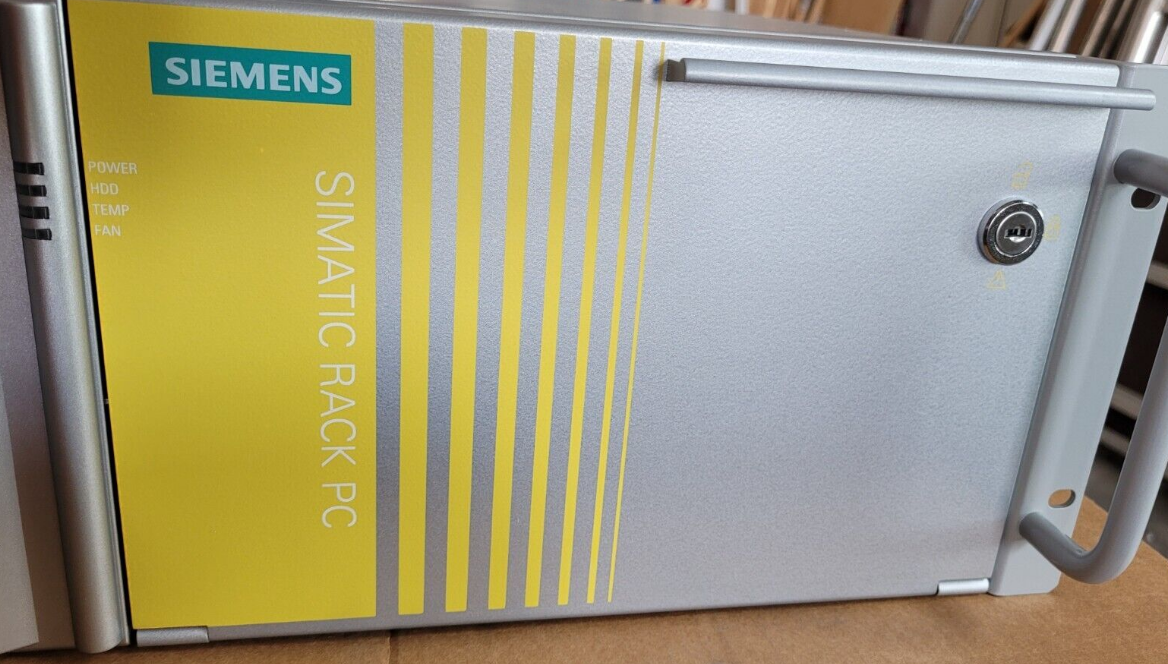

| Product Name | SIMATIC Process Control System IPC547J |
| Chassis Type | Rack PC, 19″, 4 U |
| Rear Interfaces | 3x Gbit LAN (RJ45), 1x DVI-D, 2x Display Port, 1x COM, Audio, 6x USB 3.1 Gen. 2 (2x Type C, 4x Type A) |
| Front Interfaces | 2x USB 3.1 Gen. 1 (Type A) |
| Internal Interfaces | 2x USB 2.0 |
| Expansion Slots | 7 slots total: 5x PCIe, 2x PCI (internal) |
| Monitoring Features | Temperature and fan monitoring, watchdog, card retainer |
| Processor | Intel Core i7-10700E (8C/16T, 2.9 GHz – 4.5 GHz Turbo, 16 MB cache) |
| Motherboard / Chipset | MB (Chipset W480E), with iAMT support |
| System Role | PCS 7 ES/OS Single Station, OS client |
| Storage Configuration (RAID) | RAID1, 2x 2 TB HDD [Enterprise] 3.5″ SATA |
| Front Drive Bays | Drive support for rack units (front-accessible) |
| Operating System Drive | 512 GB SSD M.2 NVMe (M.2 slot occupied) – for operating system |
| Memory (RAM) | 32 GB DDR4 SDRAM (2x 16 GB), dual-channel |
| Preinstalled Software | PCS 7 V10.0 SP1 |
| Operating System | Windows 10 IoT Enterprise 2021 LTSC, MUI (en, de, fr, it, es, zh), 64-bit; without restore USB flash drive (for Core i7 / Xeon processors) |
| Enclosure Finish | Blue chromated |
| Industrial Ethernet | CP1623 (1 slot occupied) |
| Multi-Monitor Support | 4–5 screens combined: onboard interfaces (2x DP) + PCIe x16 graphics card (3x mDP with 3x mDP-to-DP adapters) |
| Graphics Memory | 2 GB (1 slot occupied) |
| Power Supply | 2x 100/240 V AC redundant industrial power supply units |
| Power Cord | Europe type |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 17.00 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
