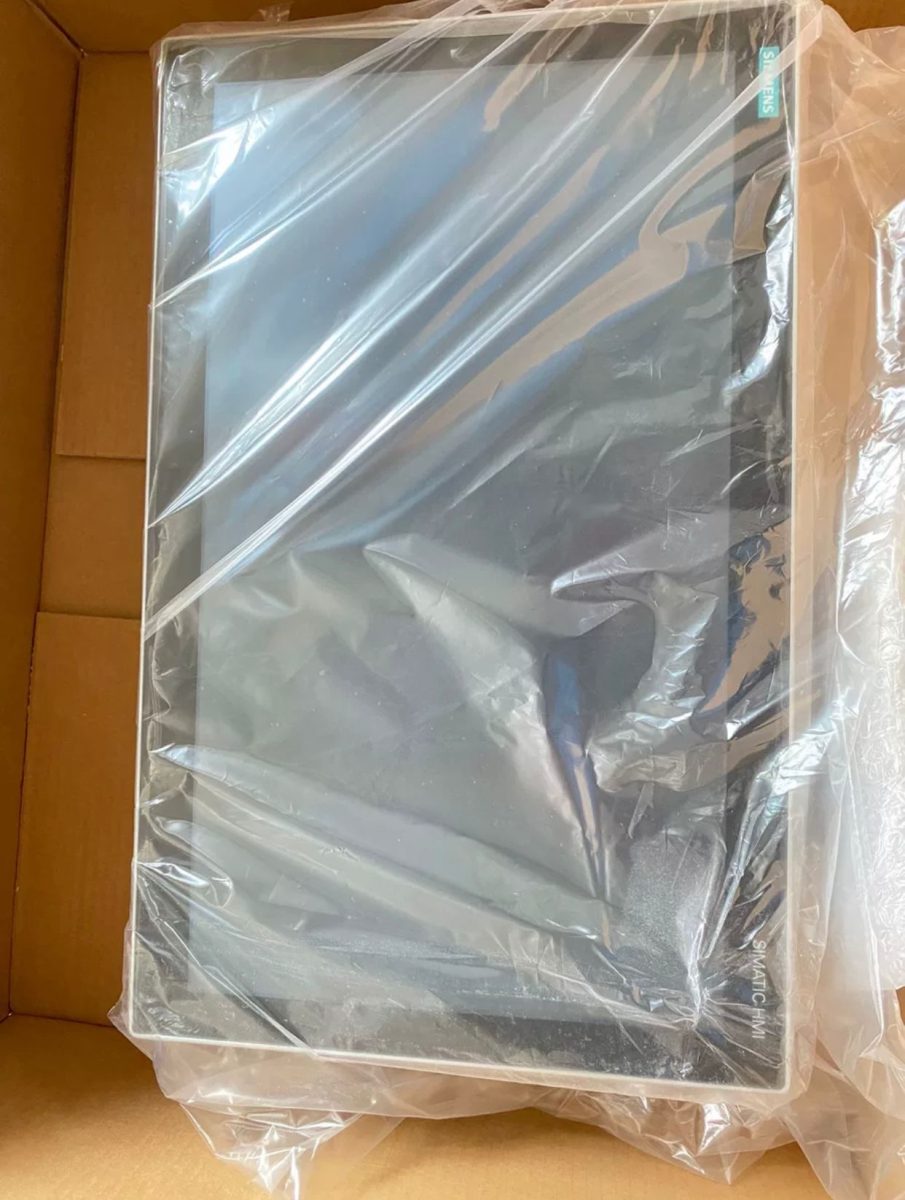

6AV7261-0BG12-4DB1
SIMATIC IPC677E(Panel PC), 19″ Multitouch (1920×1080); UHD graphic onboard; DP/DVI-D; 3x Gigabit Ethernet (IE/PN); 6x USB 3.1 Gen. 2; 1x serial (COM 1); RAID controller onboard; Watchdog, temperature and fan monitoring; Celeron G4900 (2C/2T, 3.1 GHz, 2 MB cache; VT-d); NVRAM; RAID1 2x SSD 2.5″ SATA 480 GB In removable frame; 8 GB DDR4-2666(2×4); 110/230 V AC industrial power supply unit With NAMUR; Power supply cable Europe; Windows 10 IoT Enterprise 2021 LTSC, 64-bit, MUI (en,de,fr,it,es;); for Celeron and i3; SIMATIC IPC DiagMonitor and Image&Partition Creator 2x USB 2.0 (1 slot occupied); 1x PCIe (x16), 1x PCI
| Order Number | 6AV7261-0BG12-4DB1 |
| Product Family | SIMATIC IPC677E (Panel PC) |
| Product Type | Industrial Panel PC |
| Display | 19″ Multitouch (1920 × 1080) |
| Graphics | UHD graphics onboard; DP / DVI‑D outputs |
| Ethernet Interfaces | 3 × Gigabit Ethernet (IE/PN – Industrial Ethernet / PROFINET) |
| USB Interfaces | 6 × USB 3.1 Gen. 2 2 × USB 2.0 (1 slot occupied) |
| Serial Interface | 1 × serial (COM 1) |
| Storage Controller | RAID controller onboard |
| System Monitoring | Watchdog timer, temperature and fan monitoring |
| Processor | Intel Celeron G4900 (2 cores / 2 threads, 3.1 GHz, 2 MB cache, VT‑d) |
| Retentive Memory | NVRAM |
| Storage Configuration | RAID1: 2 × SSD 2.5″ SATA 480 GB (in removable frame) |
| System Memory (RAM) | 8 GB DDR4‑2666 (2 × 4 GB) |
| Power Supply | 110/230 V AC industrial power supply unit with NAMUR compliance (includes Europe power cable) |
| Operating System | Windows 10 IoT Enterprise 2021 LTSC, 64‑bit, MUI |
| Additional Software | SIMATIC IPC DiagMonitor and Image & Partition Creator (enclosed) |
| Expansion Slots | 1 × PCIe (x16), 1 × PCI |
| Net Weight | 17.000 kg |
| Packaging Dimensions | Not available |
| Country of Origin | Germany |
