6AG4112-3JD43-5BX2

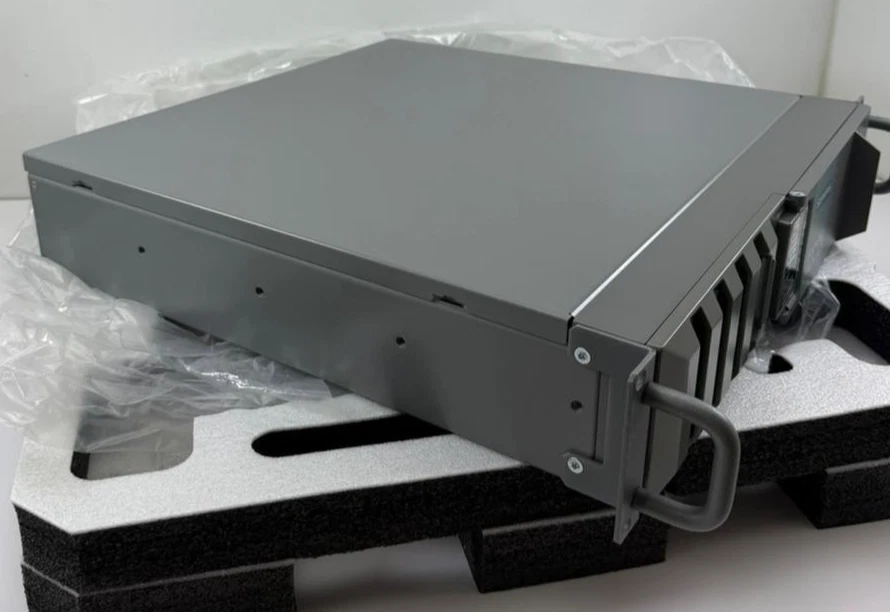

SIMATIC IPC647E (Rack PC, 19″, 2U); 3x Gbit Ethernet (IE/PN), RJ45; 1x DVI-D, 2x displayport, 1x COM1, audio, 4x USB 3.1, 2x USB 3.1 (Typ C) rear side; 2x USB 3.0 front, 1x USB3.1 internally; 1x M.2 Slot internally; temperature and fan monitoring, watchdog; card retainer; Core i7-8700 (6C/12T, 3.2 (4.6) GHz, 12 MB cache, TB, VT-D, AMT); Board 4 slots: 2x PCIe x16 (8 L), 1x PCIe x16 (4 L), 1x PCIe x16 (1 L); RAID1, 2x 2 TB HDD (Enterprise) 3.5″ SATA; Enclosure with drive support Type B (for internal installation/ 0.5 g vibration, 5 g shock); COM2 interface; 100/240 V AC industrial power supply unit; 32 GB DDR4 SDRAM (2x 16 GB), Dual Channel; 512 GB SSD M.2 NVMe (M.2 slot occupied); (for operating system) and PCIe x16 graphics card (3x mDP: 3x adapter mDP to DP) (1 slot occupied); Windows10 Enterprise 2016 LTSB, MUI (de, en, fr, it, es), 64-bit (for Core i7/Xeon); Without expansions; Power supply cable USA
| Product Order No. | 6AG4112-3JD43-5BX2 |
| Product Type | SIMATIC IPC647E (Rack PC, 19″, 2U) |
| Rear I/O Interfaces | 3x Gbit Ethernet (IE/PN), RJ45; 1x DVI-D; 2x DisplayPort; 1x COM1; Audio; 4x USB 3.1; 2x USB 3.1 (Type C) |
| Front I/O Interfaces | 2x USB 3.0 |
| Internal I/O Interfaces | 1x USB 3.1; 1x M.2 slot |
| Monitoring Features | Temperature and fan monitoring; Watchdog |
| Mechanical Features | Card retainer |
| Processor | Core i7-8700 (6C/12T, 3.2 GHz base / 4.6 GHz turbo, 12 MB cache, Turbo Boost, VT-D, AMT) |
| Board Slot Configuration | 4 slots total: 2x PCIe x16 (8 lanes), 1x PCIe x16 (4 lanes), 1x PCIe x16 (1 lane) |
| Storage Configuration (RAID) | RAID1; 2x 2 TB HDD (Enterprise), 3.5″ SATA |
| Enclosure / Drive Support | Enclosure with drive support Type B (for internal installation; rated for 0.5 g vibration, 5 g shock) |
| Additional Interface | COM2 interface |
| Power Supply | 100/240 V AC industrial power supply unit |
| System Memory (RAM) | 32 GB DDR4 SDRAM (2x 16 GB), Dual Channel |
| Primary Storage (OS Drive) | 512 GB SSD M.2 NVMe (M.2 slot occupied) |
| Graphics Card | PCIe x16 graphics card (3x mDP; includes 3x adapter mDP to DP) – 1 slot occupied |
| Operating System | Windows 10 Enterprise 2016 LTSB, MUI (de, en, fr, it, es), 64-bit (for Core i7/Xeon) |
| Expansions | None (Without expansions) |
| Accessories Included | Power supply cable (USA standard) |
| warranty | 1 YEAR |
| Net Weight (kg) | 14,000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
