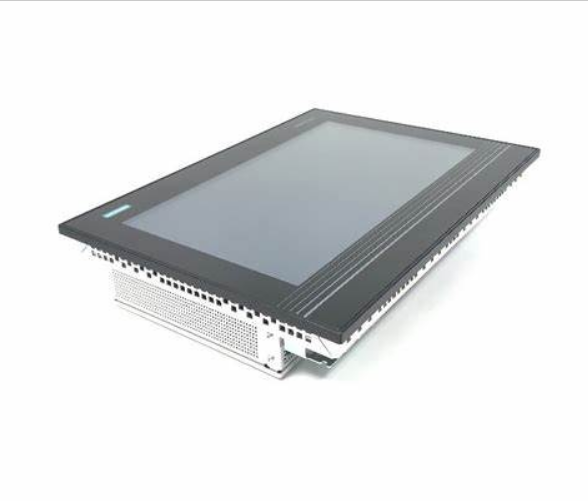

6AV7241-5DA04-0FA0
SIMATIC IPC 477E 19″ Touch (1366 x 768); with front USB; 4 USB (back), Ethernet (10/100/1000); Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); 4 GB without RS 232/RS485; without PCIe; Windows7 Ultimate SP1, 64-bit, MUI (de, en, es, fr, it); Without replaceable mass storage; 240 GB solid-state drive SATA Without SIMATIC software; 24 V DC industrial power supply
| Order Number | 6AV7241-5DA04-0FA0 |
| Product Family | SIMATIC IPC 477E |
| Product Type | 19″ Touch Panel PC |
| Display Resolution | 1366 × 768 |
| Front Panel Features | Front USB port included |
| Rear I/O Interfaces | 4 × USB (back) Ethernet (10/100/1000) |
| Processor | Intel Core i5-6442EQ |
| Ethernet Ports | 3 × Gbit Ethernet (IE/PN – Industrial Ethernet / PROFINET) |
| Memory (RAM) | 4 GB |
| Serial Interface | None (without RS 232 / RS 485) |
| Expansion Slots | None (without PCIe) |
| Operating System | Windows 7 Ultimate SP1, 64‑bit, MUI (Multilingual User Interface) – supported languages: German, English, Spanish, French, Italian |
| Mass Storage | Without replaceable mass storage |
| Storage Drive | 240 GB SATA solid‑state drive (SSD) |
| Pre‑installed Software | Without SIMATIC software |
| Power Supply Type | 24 V DC industrial power supply |
| Net Weight | 8.700 kg |
| Packaging Dimensions | Not available |
| Country of Origin | Germany |
