6FX20013GB02

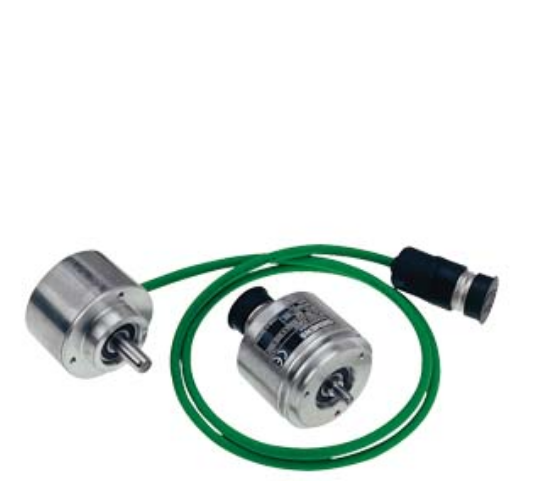

Part Nr: SIEMENS INCREM. ENCODER 6FX2001-3GB02

Brand:   Type:
State:

Inquiry Now!

Buy at DCS-Centers.com, Best price and Big Stock.

Part Number

6FX2001-3GB02

Parameter Value / Specification
Product Description INCREM. ENCODER 6FX2001-3GB02 WITH 1-V-SINUS 1024 P/R, SYNCHRON. FLANGE, 6 MM SHAFT, VOLTAGE 5 V AXIAL FLANGE CONNECTOR
Product family Incremental encoders with sin/cos 1 Vpp
Product Lifecycle (PLM) PM300: Active Product
Supply voltage (Up) DC 5 V ± 10%
Current consumption (no load, max.) 150 mA
Signal level Sinusoidal 1 Vpp
Pulses per revolution (Resolution) 1024 S/R (Signals/Revolution)
Limit frequency, typical (-3 dB) ≥ 100 kHz
Phase shift signal A to B 90 ° ± 10 %
Cable length to subsequent electronics, max. 150 m
Shaft diameter 6 mm (Synchro flange)
Shaft length 10 mm
Starting torque (at 20 °C) ≤ 0.01 Nm
Moment of inertia of rotor ≤ 2.9 x 10⁻⁶ kgm²
Angular acceleration, max. 10⁵ rad/s²
Max. permissible speed (Mechanical) 12,000 r/min
Max. permissible speed (Electrical) 17,600 r/min
Vibration (55…2000 Hz) ≤ 300 m/s²
Shock (6 ms) ≤ 2000 m/s²
Degree of protection IP67 (housing), IP64 (shaft input)
Ambient temperature (operation) -40 … +100 °C (Flange outlet/fixed cable)
Net weight Approx. 0.3 kg (0.66 lb)
Country of origin Germany
