6FX20012CC50

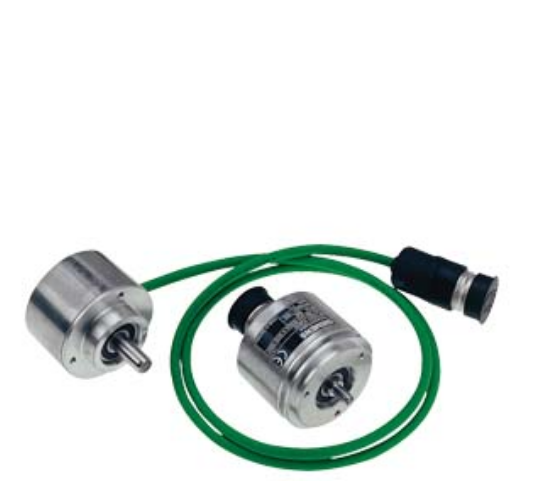

Part Nr: SIEMENS INCREM. ENCODER 6FX2001-2CC50 WITH RS 422 (TTL)

Brand:   Type:
State:

Inquiry Now!

Buy at DCS-Centers.com, Best price and Big Stock.

Part Number

6FX2001-2CC50

Parameter Value / Description
Product Description INCREM. ENCODER 6FX2001-2CC50 WITH RS 422 (TTL), 2500 P/R, SYNCHRO-FLANGE SHAFT 6MM OPERATING VOLTAGE: 5 V UNIVERSAL CABLE OUTLET AXIAL / RADIAL CABLE 1M WITH CONNECTOR
Product Family Incremental encoders with RS422 (TTL)
Encoder Type Incremental, Optical
Output Signal Level TTL (RS 422)
Resolution 2500 pulses per revolution (S/R)
Supply Voltage (Up) DC 5 V ± 10%
Current Consumption (no load, max.) 150 mA
Max. Scanning / Sampling Frequency 300 kHz
Switching Time (10 … 90 %) ≤ 50 ns
Phase Relation Signal A to B 90 °
Edge Clearance at 300 kHz 0.45 µs
LED Failure Monitoring High impedance driver
Electrical Max. Speed 7,200 RPM
Mechanical Max. Speed 12,000 RPM
Max. Angular Acceleration 100,000 rad/s²
Shaft Diameter 6 mm (Solid shaft, Synchro-flange)
Shaft Length 10 mm
Rotor Moment of Inertia 0.00000145 kg m²
Axial Load Capacity (n ≤ 6000 RPM) 40 N
Radial Load Capacity at shaft end (n ≤ 6000 RPM) 60 N
Cable Length (pre-wired) 1 meter with connector (universal axial/radial outlet)
Max. Cable Length (to downstream electronics) 100 m
Degree of Protection IP67 (housing) / IP64 (shaft input)
Operating Temp. (fixed cable) -40 … +100 °C
Operating Temp. (flexible cable) -10 … +100 °C
Vibration Resistance (55…2000 Hz) 300 m/s²
Shock Resistance 2000 m/s² (2 ms) / 1000 m/s² (6 ms)
Net Weight approx. 0.3 kg
