6FX2 001-5FS24



Part Nr: SIEMENS ABSOLUTE VALUE ENCODER 6FX2001-5FS24 MULTITURN 25 BIT WITH SSI,

Brand:   Type:
State:

Inquiry Now!

Buy at DCS-Centers.com, Best price and Big Stock.

Part Number

6FX2001-5FS24

ABSOLUTE VALUE ENCODER 6FX2001-5FS24 MULTITURN 25 BIT WITH SSI, OPERAT. VOLT. 10-30 V SYNCHROFLANGE SHAFT 6MM RADIAL FLANGE SOCKET

Product Type Absolute value encoder, multiturn
Part Number 6FX2001-5FS24
Electrical Data
Operating voltage UPUP​ DC 10 … 30 V
Current consumption (approx.) 200 mA
Interface SSI (Synchronous Serial Interface)
Clock input Differential line receiver according to EIA Standard RS 485
Data output Differential line driver according to EIA Standard RS 485
Short-circuit proof Yes
Clock frequency 100 kHz … 1 MHz
Performance
Resolution 25 bit (8192 steps/revolution x 4096 revolutions)
Telegram 25 bit, without parity
Code type (Sampling) Gray code
Code type (Transfer) Gray code, fir-tree format
Accuracy ± 79″ (arcseconds) / ± 0.022° (at 8192 steps)
Mechanical Data
Max. speed (electrical, with ± 1 LSB accuracy) 5000 RPM
Max. speed (electrical, with ± 100 LSB accuracy) 10000 RPM
Max. speed (mechanical) 10000 RPM
Shaft diameter 6 mm
Shaft length 10 mm
Flange type Synchro flange
Connection type M23 flange socket, radial
Moment of inertia of rotor 0.00000145 kg·m²
Max. angular acceleration 100,000 rad/s²
Starting torque (at 20°C) ≤ 0.01 N·m
Environmental & Approvals
Degree of protection (housing) IP67
Degree of protection (shaft inlet) IP64
Operating ambient temperature -40 … +85 °C
Vibration resistance (55…2000 Hz) 300 m/s² (according to EN 60068-2-6)
Shock resistance (6 ms) 1000 m/s² (according to EN 60068-2-27)
Weight (approx.) 0,5 Kg

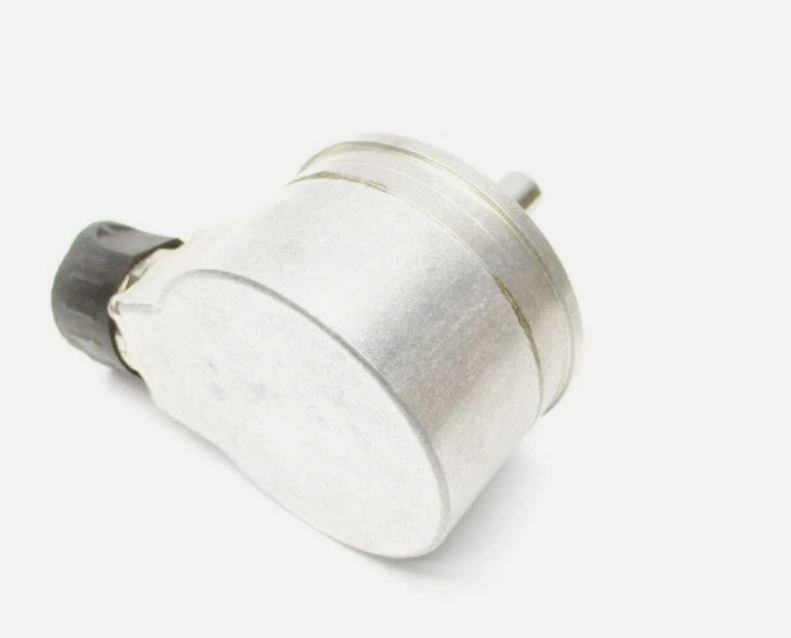

parts photo album​
