6FX2001-5FP24
| General Information | |
| Article Number | 6FX2001-5FP24 |

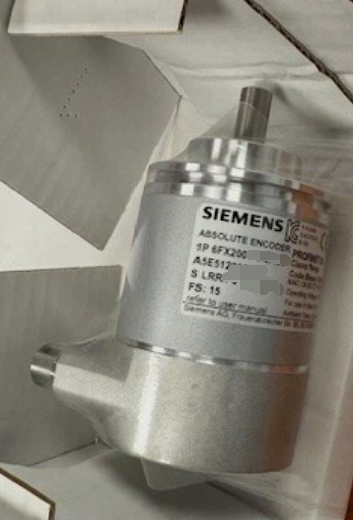

| Product Description | Absolute value encoder with PROFIBUS DP, synchro flange with hood and PG radial connection |
| Product Family | Absolute encoders with PROFIBUS DP |
| Product Lifecycle (PLM) | PM300: Active Product |
| Electrical Data | |
| Operating Voltage (Up) | DC 10 … 30 V |
| Interface | PROFIBUS DP-V2 |
| Transmission Rate | 12 Mbit/s |
| Short-circuit Strength | Yes |
| Power Consumption (Typ.) | Approx. 2.5 W |
| Resolution & Accuracy | |
| Resolution | 27 bit (13 bit single-turn + 14 bit multi-turn) |
| Accuracy | ± 79 ” (± 1 LSB at 8192 steps) |
| Code Type (Sampling) | Gray |
| Code Type (Transmission) | Binary, PROFIBUS |
| Parameterizability | |
| Preset | Yes |
| Counting Direction | Yes |
| Resolution per Revolution (Adjustable) | 1 … 8192 |
| Total Resolution (Adjustable) | 1 … 8192 x 16384 |
| Speed Signal | Yes |
| Limit Switch | Yes |
| Clock Synchronism | Yes |
| Slave-to-slave communication | Yes |
| Mechanical Data | |
| Speed (Mechanical, max.) | 6,000 rpm |
| Speed (with ± 1 LSB accuracy, max.) | 5,800 rpm |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Rotor Moment of Inertia | 0.0000019 kgm² |
| Angular Acceleration (max.) | 100,000 rad/s² |
| Friction Torque (at 20 °C) | ≤ 0.01 Nm |
| Starting Torque (at 20 °C) | ≤ 0.01 Nm |
| Load Ratings (Shaft) | |
| Axial (n ≤ 6000 rpm) | 40 N |
| Radial at shaft end (n ≤ 6000 rpm) | 110 N |
| Axial (n > 6000 rpm) | 10 N |
| Radial at shaft end (n > 6000 rpm) | 20 N |
| Environmental Conditions | |
| Ambient Temperature (Operation) | -40 … +85 °C |
| Degree of Protection (Housing) | IP67 |
| Degree of Protection (Shaft input) | IP64 |
| Vibration (55…2000 Hz) | 100 m/s² (according to EN 60068-2-6) |
| Shock (6 ms) | 1,000 m/s² (according to EN 60068-2-27) |
| Additional Information | |
| Connection Type | Terminal block with address selector switch and bus terminating resistor, radial |
| Net Weight | Approx. 0.5 kg |
| Country of origin | Poland |
