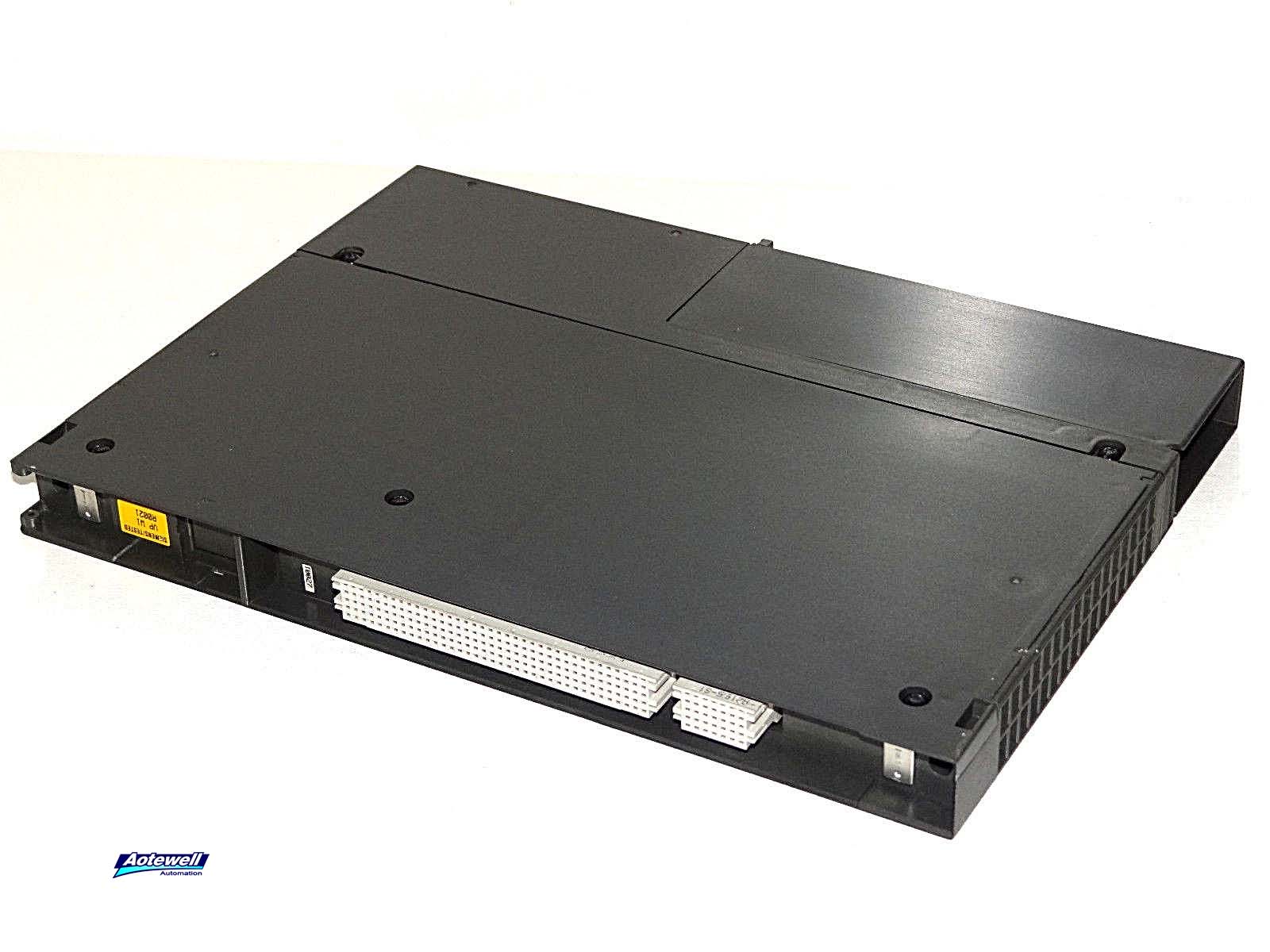

6ES7416-2XN05-0AB0
********** Replacement part ********* SIMATIC S7-400, CPU 416-2 Central processing unit with: work memory 5.6 MB, (2.8 MB code, 2.8 MB data), 1st interface MPI/DP 12 Mbit/s, 2nd interface PROFIBUS DP
| Product Overview | |
| Product Type Designation | CPU 416-2 |
| Article Number (MLFB) | 6ES7416-2XN05-0AB0 |
| Firmware Version | V5.3 |
| Engineering Software | STEP 7 V5.3 SP2 or higher (with HW update) |
| Integrated Work Memory | 5.6 MB total (2.8 MB Code, 2.8 MB Data) |
| Work Memory Expandable | No |
| Load Memory (Expandable) | Yes, up to 64 Mbyte via Flash or RAM Memory Card |
| Memory Type | RAM |
| Battery Buffering | Yes (with battery) |
| Operation | Typical Processing Time |
| Bit / Word / Fixed-point | 30 ns |
| Floating-point | 90 ns |
| Interface 1 | MPI/DP (12 Mbit/s) |
| Interface 2 | PROFIBUS DP |
| Number of RS 485 Interfaces | 2 (Combined MPI/DP and PROFIBUS DP) |
| Multiprocessor Mode | Yes (Up to 4 CPUs in UR1 or UR2) |
| Supply Voltage | Via system power supply (Not directly 24V DC) |
| Current Consumption (Backplane 5V) | Typ. 0.9 A / Max. 1.1 A |
| Power Loss | Typ. 4.5 W / Max. 5 W |
| Dimensions (W x H x D) | 29,6 x 23,3 x 4,1 cm |
| Net Weight | 0,856 Kg |
