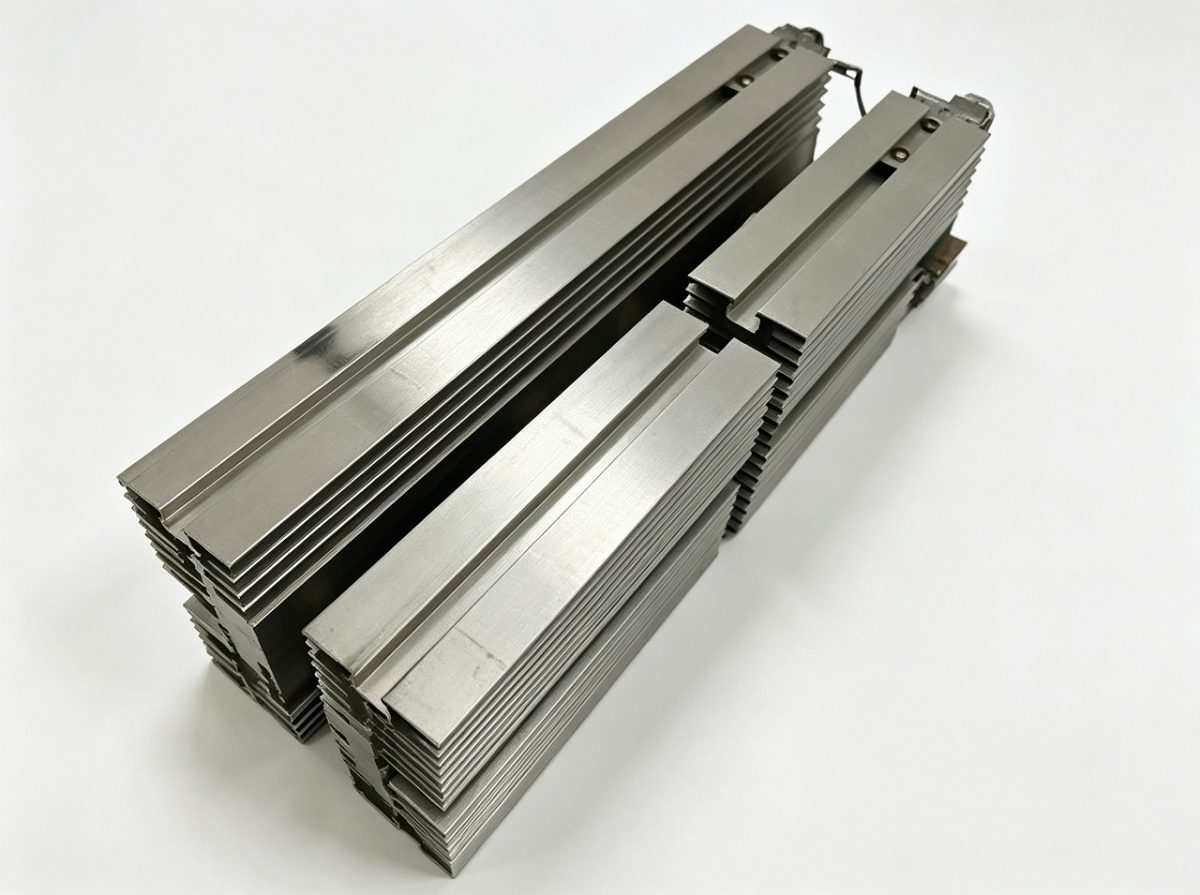

6SY7010-0AB01 Specifications

Basic Information

• Model: 6SY7010-0AB01
• Type: Siemens Thyristor Module
• Brand: Siemens (Made in Germany)
• Applicable Equipment: SIMOVERT MV, 6SE70 / 6RA70 series high-power inverters and DC drive units

Core Electrical Ratings

• Rated AC Input Voltage: 380～460V, 50/60Hz
• Rated RMS Current: 1023A
• Repetitive Peak Off-state Voltage (VDRM): 1600V
• Non-repetitive Surge Current (ITSM): Approx. 1230A (peak, 50Hz half-wave)
• Gate Trigger Current (IGT): ≤2A
• Gate Trigger Voltage (VGT): ≤3.6V
• Holding Current (IH): Approx. 1300mA
• On-state Voltage Drop (VTM): Approx. 1.8V (typical)

Environmental & Mechanical Parameters

• Operating Junction Temperature: -40℃ ～ +125℃
• Storage Temperature: -55℃ ～ +150℃
• Cooling Method: Water cooling (standard) / Forced air cooling (optional)
• Weight: Approx. 25kg
• Dimensions (W×H×D): Approx. 730×380×450mm
• Protection Class: IP20 (module body)

Features

1. High power density, designed for high-power drive applications.
2. Built-in snubber circuit to suppress overvoltage and protect thyristors.
3. Ceramic-metal composite packaging, vibration and impact resistant.
4. Modular structure for easy maintenance and replacement.
