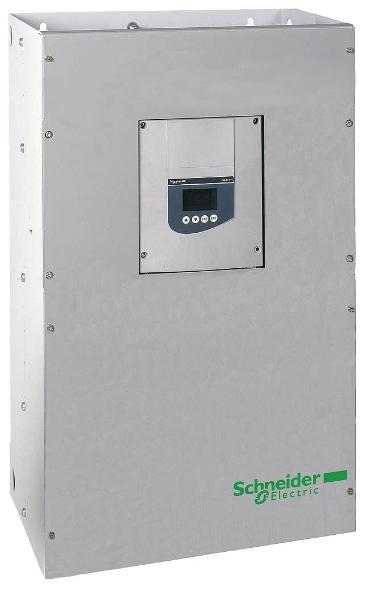

Schneider Softstart ATS48C48Y  Stop production

Part Nr: ATS48C48Y Schneider soft starter for asynchronous motor, Altistart 48, 414A, 208..690V, 110..500kW

Brand: Schneider  Type: Softstart
State: Check Stock

Buy Schneider Schneider ATS48C48Y at DCS-Centers.com, Best price and Big Stock.

soft starter for asynchronous motor, Altistart 48, 414A, 208..690V, 110..500kW

ATS48C48Y

Range of Product Altistart 48
Product or Component Type Soft starter
product destination Asynchronous motors
Product Specific Application Heavy duty industry and pumps
Device short name ATS48
Utilisation category AC-53A
Ue power supply voltage 208…690 V – 15…10 %
power supply frequency 50…60 Hz – 5…5 %
Motor power kW 110 kW 230 V for severe applications
132 kW 230 V for standard applications
220 kW 400 V for severe applications
220 kW 440 V for severe applications
250 kW 400 V for standard applications
250 kW 440 V for standard applications
250 kW 500 V for severe applications
250 kW 525 V for severe applications
315 kW 500 V for standard applications
315 kW 525 V for standard applications
355 kW 660 V for severe applications
400 kW 660 V for standard applications
400 kW 690 V for severe applications
500 kW 690 V for standard applications
Maximum Horse Power Rating 125 hp 208 V for severe applications
150 hp 208 V for standard applications
150 hp 230 V for severe applications
300 hp 460 V for severe applications
350 hp 460 V for standard applications
350 hp 575 V for severe applications
400 hp 575 V for standard applications



Device connection In the motor supply line
Protection type Phase failure line
Thermal protection motor
Thermal protection starter
Standards EN/IEC 60947-4-2
Product Certifications UL
NOM 117
DNV
SEPRO
C-tick
CSA
GOST
CCC
TCF
marking CE
Discrete input number 5
Discrete input type PTC, 750 Ohm 77 掳F (25 掳C)
Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
Discrete input logic Positive logic Stop, Run, LI3, LI4 < 5 V <= 2 mA > 11 V, >= 5 mA
Minimum switching current 10 mA 6 V DC relay outputs
Discrete output number 2
Discrete output type LO1) logic output 0 V common configurable
LO2) logic output 0 V common configurable
R1) relay outputs fault relay NO
R2) relay outputs end of starting relay NO
R3) relay outputs motor powered NO
Analogue output type Current output AO 0-20 mA or 4-20 mA 500 Ohm
Communication Port Protocol Modbus
Connector Type 1 RJ45
Communication data link Serial
Physical interface RS485 multidrop
Transmission Rate 4800, 9600 or 19200 bps
Function Available External bypass (optional)
Operating position Vertical +/- 10 degree
Height 26.38 in (670 mm)
Width 15.75 in (400 mm)
Depth 11.81 in (300 mm)
Net Weight 113.32 lb(US) (51.4 kg)



Electromagnetic compatibility Conducted and radiated emissions level A IEC 60947-4-2
Damped oscillating waves level 3 IEC 61000-4-12
Electrostatic discharge level 3 IEC 61000-4-2
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/current impulse level 3 IEC 61000-4-5
Relative humidity 0…95 % without condensation or dripping water EN/IEC 60068-2-3
Ambient air temperature for operation 104…140 °F (40…60 °C) with current derating of 2 % per °C)
14…104 °F (-10…40 °C) without derating)
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Operating altitude <= 3280.84 ft (1000 m) without derating
> 3280.84…6561.68 ft (> 1000…2000 m) with current derating of 2.2 % per additional 100 m
Ordering and shipping details
Category US1CP1G22579
Discount Schedule CP1G
GTIN 3.38911E+12
Returnability No
Country of origin FR
