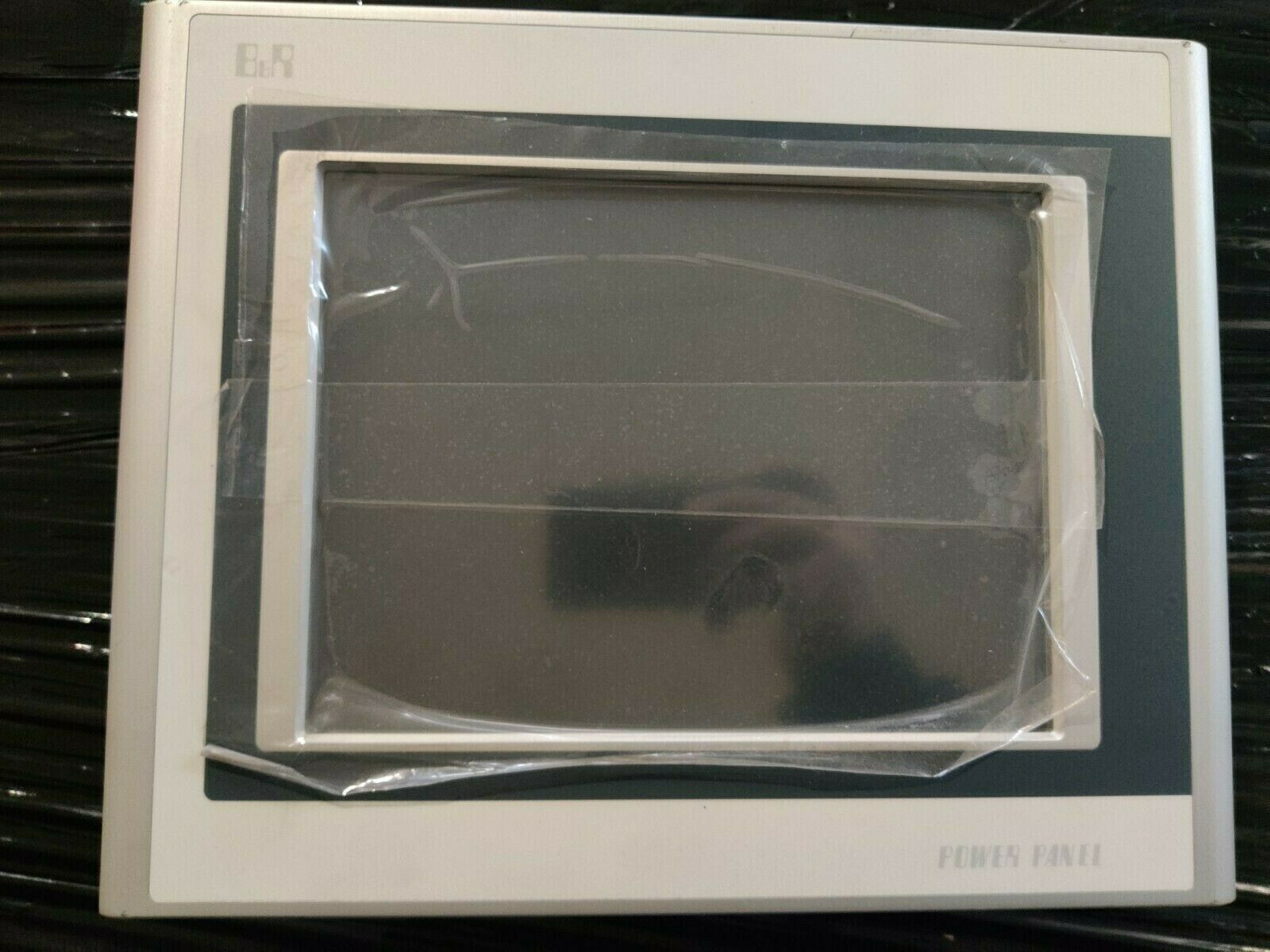

4PP420.1043-B5
| Item | Specification |
|---|---|
| Model No. | 4PP420.1043-B5 |
| Series | PP420 Power Panel All-in-one HMI & Controller |
| Display Size | 10.4″ Color TFT LCD |
| Screen Resolution | VGA 640 × 480 |
| Touch Type | Analog resistive touch screen |
| CPU Platform | Embedded industrial processor, passive fanless cooling |
| Main Memory | 128 MB SDRAM |
| High-speed SRAM | 512 KB SRAM |
| Expansion Slots | 2 × aPCI expansion slots |
| Storage Slot | CompactFlash Type I slot |
| Ethernet Port | 1 × 10/100 Mbps RJ45 Ethernet |
| Serial Interface | 1 × RS232 (9-pin D-Sub connector) |
| USB Interfaces | 2 × USB 2.0 Type-A ports |
| Front Panel Protection | IP65 / NEMA 4X (dust & splash resistant) |
| Rear Housing Protection | IP20 |
| Mounting Method | Landscape flush panel mount for control cabinet |
| Power Supply | 24 V DC nominal, operating range 18 ~ 30 V DC |
| Typical Power Consumption | Approx. 12 W |
| Nominal Operating Current | 0.5 A |
| RTC Backup Battery | Renata lithium cell, 950 mAh, service life 3 years, externally replaceable |
| Backup Buffer Capacitor | Supports 10 mins data retention without battery |
| Physical Dimensions (W × H × D) | 323 mm × 260 mm × 86 mm |
| Net Weight | Approx. 1.7 kg |
| Operating Temperature | 0 °C ~ +50 °C |
| Storage / Transport Temperature | -20 °C ~ +70 °C |
| Max Operating Altitude | 3000 m above sea level |
| Vibration Resistance (Running) | 2–9 Hz: 3.5 mm amplitude; 9–200 Hz: 1 g |
| Shock Resistance (Running) | 15 g, 11 ms pulse duration |
| Status Indicators | Power LED, User LED, CF card activity LED |
| Physical Buttons | Power switch, Reset button |
| Supported Software | B&R Automation Studio, Automation Runtime OS |
| Certifications | CE industrial compliance, EMC IEC 61000-6-2 |
| Housing Material | Anodized aluminum front frame, metal rear casing |
