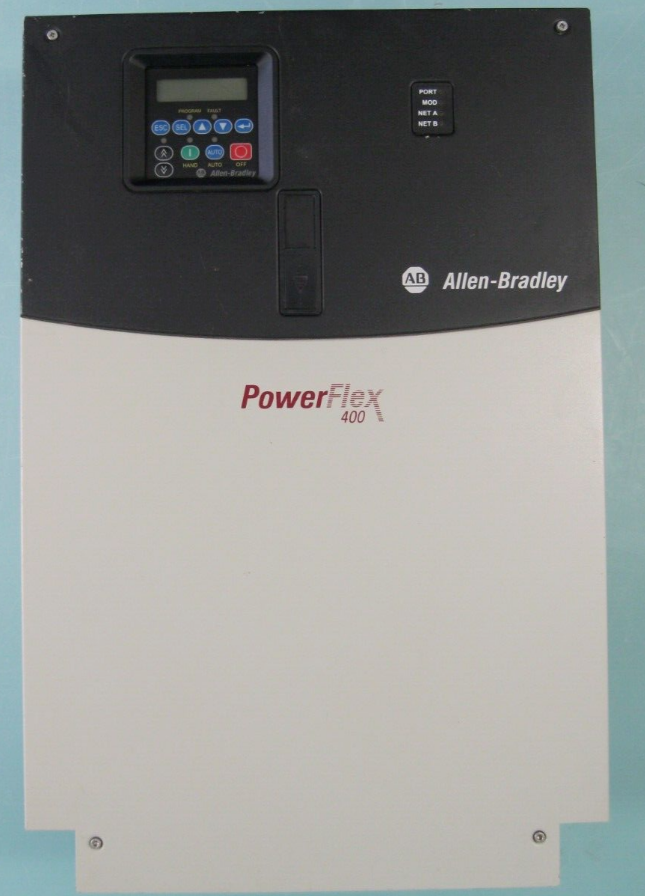

22C-B120A103
Description: The 22C-B120A103 drive is an Allen-Bradley/Rockwell Automation adjustable frequency drive from the PowerFlex 400 series. It comes with a Size E frame and it can be mounted inside an IP 30 rated enclosure for protection. The 22C-B120A103 adjustable frequency drive operates with a 3-phase input voltage rating of 200 to 240 Volts AC and an input frequency rating of 50 to 60 Hertz. It can support an output current rating of 120 Amps at ambient temperatures of up to 50 degrees Celsius. The 22C-B120A103 adjustable frequency drive is well-suited for industrial fan and pump applications.
Technical Specifications for 22C-B120A103
| Category | Verified Specification 22C-B120A103 |
|---|---|
| Catalog Number (MPN) | 22C-B120A103 |
| Brand | Allen‑Bradley / Rockwell Automation |
| Product Family | PowerFlex 400 Adjustable Frequency AC Drive (Fan & Pump Optimized) |
| Country of Origin | Malaysia |
| Rated Power | 30 kW / 40 HP |
| Rated Continuous Output Current | 120 A |
| Input Voltage | 3AC 200…240 V (208V nominal), ±10%, 50/60 Hz |
| Frame Size | Frame E |
| Enclosure Rating | IP30 / NEMA Type 1 (UL Type 1) |
| Operator Interface | Integrated Fixed Local Keypad |
| Onboard Communication | RS485, supports Modbus RTU, DSI, Metasys N2 |
| Optional Communication Adapters | DeviceNet, PROFIBUS DP, EtherNet/IP |
| Brake IGBT | Not equipped (without internal brake transistor) |
| EMC Filter | Standard unit without built-in EMC filter |
| Control Algorithm | V/Hz control with slip compensation, built-in PID |
| Output Frequency Range | 0 … 320 Hz |
| Overload Rating | 110% for 60 seconds (variable torque fan/pump duty) |
| Mechanical Dimensions | W 335 mm × H 567 mm × D 140 mm |
| Net Weight | Approx. 22.3 kg |
| Mounting Method | Vertical panel wall mounting inside control cabinet |
| Protection Class | IP30 |
| Operating Environment | Full rating up to +50 °C ambient temperature
Storage temperature: -40 °C … +70 °C Humidity: 5–95% non‑condensing, Pollution Degree 2 |
| Certifications | CE, UL/cULus compliant |
| Lifecycle Status | Active production spare unit |
| Packaging Note | Original single export reinforced carton; exact outer carton dimensions not published on official datasheet. |
