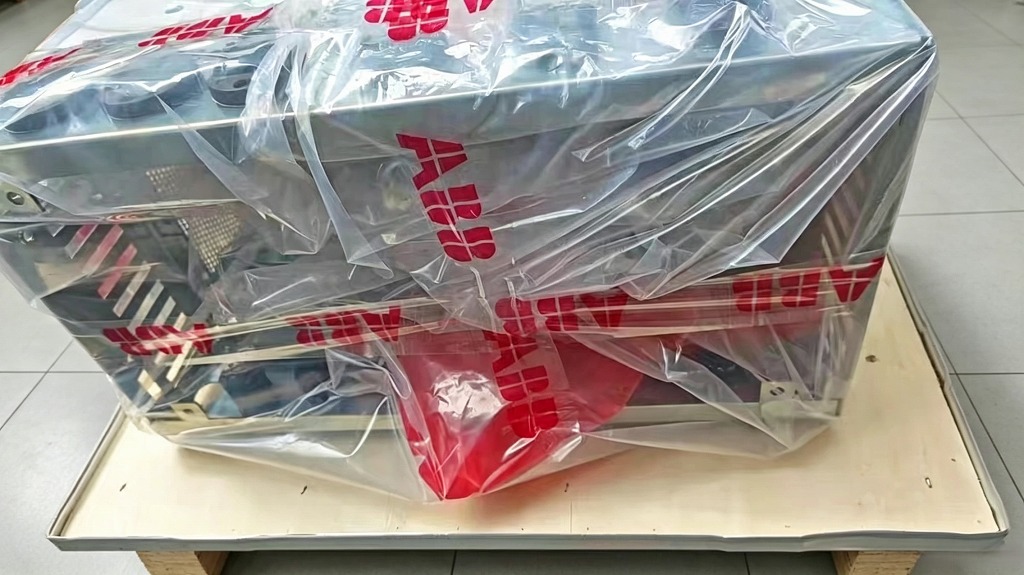

ACS800-04-0320-5 ACS800-0403205 ACS800-04-0320-5+P901
| Item | Parameter |
|---|---|
| Main Article Number | ACS800‑04‑0320‑5+P901 |
| Alternative order code | ACS800‑0403205 |
| Basic type | ACS800‑04‑0320‑5 |
| Product ID | 64704621ABB Group |
| Product Name | Frequency Converter / Single Drive Module |
| Product Series | ACS800 Industrial Drive Series |
| Frame Size | R8ABB Group |
| Enclosure Class | IP00 (module for cabinet assembly)ABB Group |
| Mounting Type | Vertical cabinet‑module mounting |
| Number of Input Phases | 3‑phase |
| Input Voltage Uin | 380 … 500 V AC |
| Input Frequency | 48 … 63 Hz |
| Integrated Option | +P901: Built‑in braking chopper |
| Output Current, Heavy‑Duty Use | 340 A |
| Output Power, Heavy‑Duty Use | 200 kW |
| Output Current, Light‑Overload Use | 435 A |
| Output Current, Normal Use | 440 A |
| Output Power, Normal / Light‑Overload Use | 250 kW |
| Motor Control Technology | DTC Direct Torque Control |
| Cooling Method | Internal forced air cooling, front‑to‑top airflowManualsLib |
| Net Dimensions (H × W × D) | 1555 mm × 575 mm × 564 mm |
| Net Weight | 205 kg |
| Operating Ambient Temperature | 0 … +50 °C; power derating above 40 °C |
| Storage / Transport Temperature | ‑40 … +70 °C |
| Relative Humidity | 5‑95 %, non‑condensing |
| Communication Interface | DDCS link, supports optional fieldbus adapters |
| Certifications | CE, UL, cUL, CSA |
| UNSPSC Code | 39122001ABB Group |
ACS800‑04‑0320‑5+P901 is ABB cabinet‑assembly module‑type frequency converter belonging to ACS800 series industrial drive family. This unit is designed for installing inside user‑provided electrical cabinets with IP00 open‑frame enclosure class, requiring external cabinet to provide protection against dust and mechanical contact. It accepts 3‑phase AC input voltage 380‑500 V and input frequency range 48‑63 Hz, adapting to most global industrial power grid conditions.
The drive provides multi‑rating operation for different load profiles. Under heavy‑duty use condition, output current reaches 340 A with rated power 200 kW for cyclic shock‑load applications. For light‑overload use, output current is 435 A and normal‑use output current is 440 A, corresponding to 250 kW rated output power for continuous steady‑load operation. The +P901 option is integrated on this unit according to ordering code. As a module‑style drive for cabinet assembly, it allows flexible combination of input components, output fuses, cooling air duct and auxiliary devices inside customer cabinet to satisfy project‑specific requirements.
It supports ABB DTC (Direct Torque Control) motor control technology, delivering fast torque response, accurate speed and torque regulation for asynchronous motors. Suitable for 24‑hours continuous running in heavy‑industry environment. Multiple overload capacity settings help users match actual mechanical load to optimize drive dimensioning, reduce investment while ensuring equipment safety margin.
