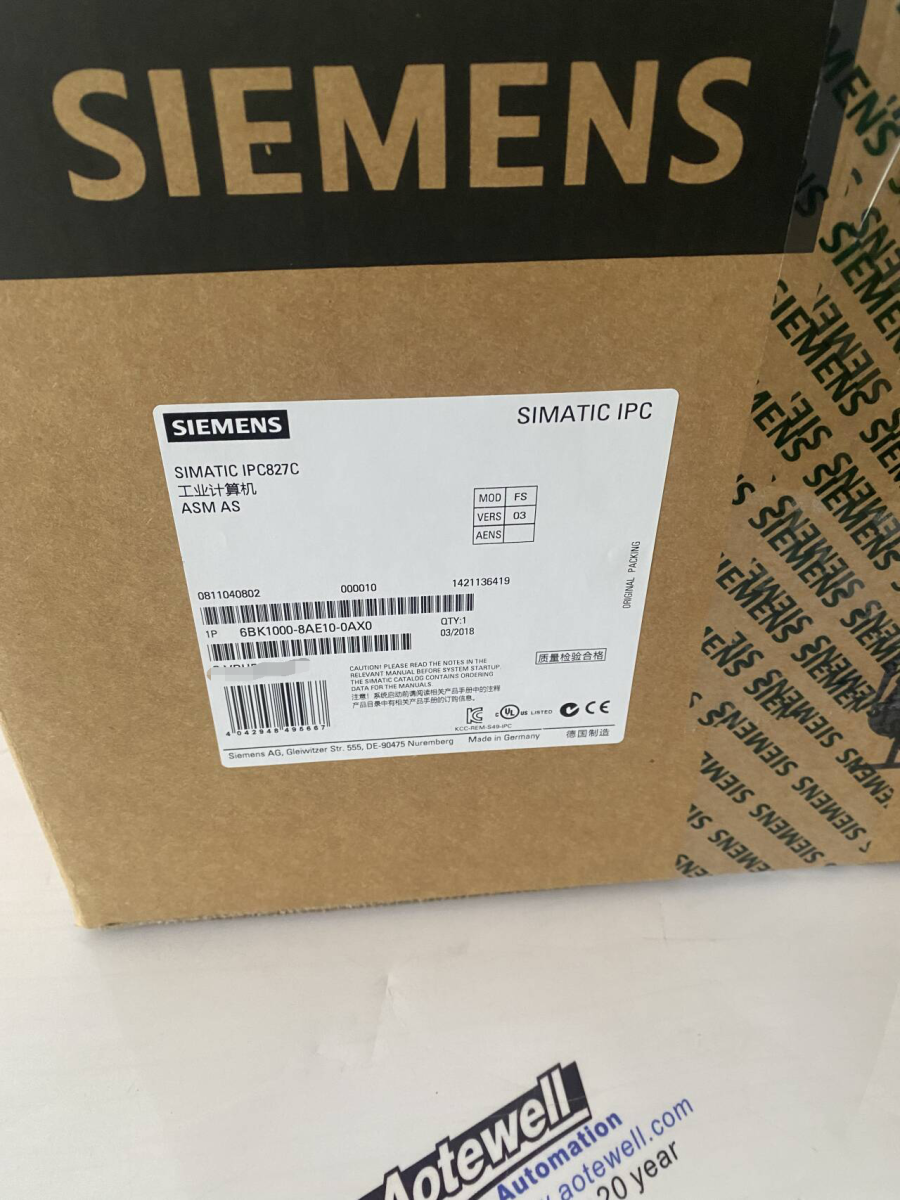

Product: Siemens SIMATIC Box PC 827C (Customized for ASM SIPLACE SX Series) | Type: Industrial Control Computer
Power Supply & Electrical Parameters
| Parameter | Value | Notes |
|---|---|---|
| DC Input Voltage | 24 V DC (nominal) | 19.2–28.8 V DC (-20% / +20%) |
| AC Input Voltage | 100–240 V AC | Wide range, 50/60 Hz |
| DC Input Current (Full Load) | ≤ 8 A | At 24 V DC |
| AC Input Current | 2.3 A @ 110 V AC; 1.15 A @ 230 V AC | Full load |
| DC Inrush Current | ≤ 14 A | Peak for 30 ms at startup |
| AC Inrush Current | ≤ 50 A | Peak for 1 ms at startup |
| Max Power Consumption | ≤ 176 W / 190 VA | Full system load (CPU, I/O, storage active) |
| Idle Power Consumption | ~60 W | System standby, low load |
| Power Supply Type | Industrial DC/DC | Isolated, SELV, wide tolerance |
| Protection Class | IP20 | In installed state |
Core Hardware Specifications
| Component | Details | |
|---|---|---|
| Processor | Intel Core i3/i5/i7 (depending on variant) | High-performance for real-time control & vision processing |
| Memory (RAM) | Up to 8 GB DDR3 | ECC optional for error correction |
| Storage | 2× 2.5″ SATA HDD/SSD + CF slot | RAID 1 support for redundancy |
| Expansion Slots | 3× PCI, 1× PCIe x4, 1× PCIe x16 | For motion control, vision, I/O cards |
| Graphics | Onboard Intel HD Graphics | Supports CRT/DVI up to 1600×1200 @ 60 Hz |
| Network | 2× Gigabit Ethernet (PROFINET/IE) | Redundant, IT/OT network isolation |
| Interfaces | 4× USB 2.0, 1× RS-232 (COM), DVI-I, Audio | High-current USB for industrial peripherals |
| Watchdog | Hardware watchdog | Auto-reboot on system hang |
| Temperature Monitoring | CPU, system, fan speed | Overtemperature protection |
Mechanical & Environmental
| Parameter | Value | |
|---|---|---|
| Dimensions | ~305 × 267 × 76 mm (W×D×H) | Compact for control cabinet mounting |
| Weight | ~8 kg | Robust metal chassis |
| Operating Temperature | 0–55 °C | 24/7 continuous operation |
| Vibration Resistance | Industrial grade | For SMT machine high-vibration environment |
| EMC Compliance | EN 61000-6-2/-4 | Industrial electromagnetic immunity |
