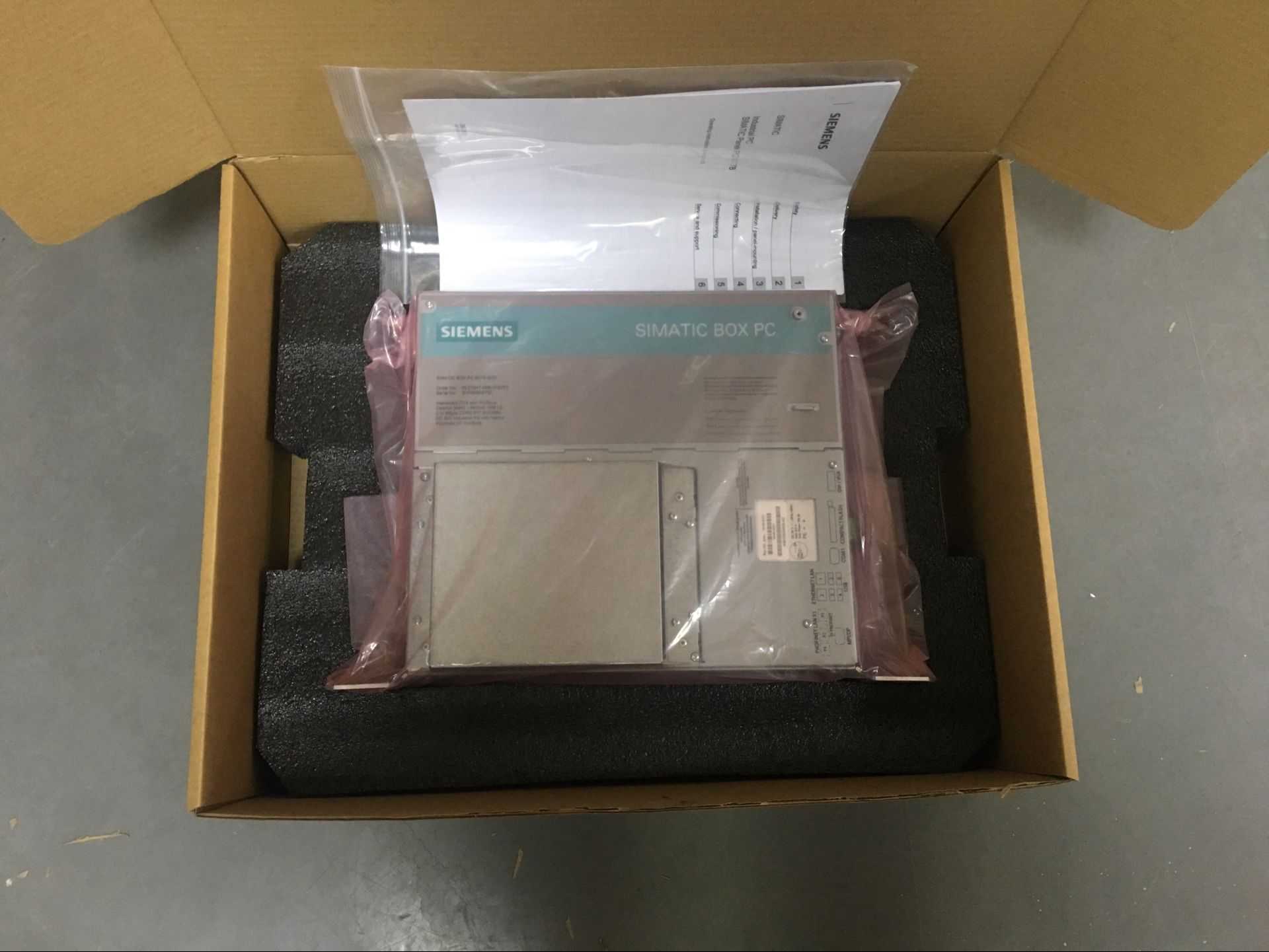

This is a discontinued rugged industrial PC with Core 2 Duo T5500, 256MB DDR2, onboard graphics, dual Gigabit Ethernet, and industrial power options. Below are detailed electrical, mechanical, and performance specs.
1. Core Electrical Parameters (Voltage, Current, Power)
| Parameter | Specification |
|---|---|
| Model | 6ES7647-6BD00-0BX0 (SIMATIC Box PC 627B) |
| Power Supply (Standard) | 100–240 V AC autorange, 50/60 Hz (47–63 Hz) |
| Power Supply (Optional) | 24 V DC isolated (20.4–28.8 V DC) |
| Power Rating (AC) | 190 W (max) |
| Power Rating (DC) | 210 W (max) |
| Typical Power Consumption | ~80–120 W (full load) |
| Inrush Current | < 20 A (AC) |
| Standby Power | < 5 W |
| Power Fail Bridging | NAMUR-compliant: up to 20 ms at 93 V AC or 264 V AC |
| Protection Class | Class I (VDE 0106 Part 1 / IEC 536) |
2. Processor & Memory
| Parameter | Specification |
|---|---|
| CPU | Intel Core 2 Duo T5500 (1.66 GHz, 2 MB L2 cache, 667 MHz FSB) |
| Chipset | Mobile Intel 945GM Express + ICH7R |
| RAM | 256 MB DDR2 667 SODIMM (expandable up to 4 GB) |
| Graphics | Onboard Intel GMA 950, 8–128 MB shared memory; DVI-I (analog/digital) |
| Storage | 160 GB SATA HDD (3.5″); front CompactFlash slot (no CF included) |
| RAID | Onboard RAID controller (RAID 0/1) |
3. Interfaces
| Interface | Quantity & Type |
|---|---|
| Ethernet | 2 × 10/100/1000 Mbit/s RJ45 (teaming capable) |
| USB | 4 × USB 2.0 (high-current, high-speed) |
| Serial | 1 × COM1 (RS-232) |
| Video | 1 × DVI-I (VGA via adapter) |
| Expansion | 2 × PCI slots (265 mm + 175 mm) or 1 × PCI + 1 × PCIe x4 |
4. Environmental & Mechanical
| Parameter | Specification |
|---|---|
| Operating Temp | 5–45 °C (full config); 5–50 °C (≤20 W PCI load); 5–55 °C (≤10 W PCI load) |
| Storage Temp | -20–60 °C |
| Humidity | 5–80% RH (non-condensing) |
| Vibration (Operational) | 10–58 Hz: 0.75 mm; 58–500 Hz: 9.8 m/s² (1 g) |
| Shock (Operational) | 50 m/s² (5 g), 11 ms |
| IP Rating | IP20 (front/rear) |
| Dimensions | 298 × 301 × 80 mm (without DVD); 298 × 301 × 100 mm (with DVD) |
| Weight | ~7 kg |
| Mounting | Wall, DIN-rail, cabinet mounting |
5. Monitoring & Diagnostics
| Feature | Details |
|---|---|
| Watchdog | Programmable timeout; auto-restart on fault |
| Temperature | Over/under temp monitoring; user alerts |
| Fan | Speed monitoring; fault indication |
| Status | Dual 7-segment displays + 2 × 2-color LEDs (user-programmable) |
| Remote | SIMATIC PC DiagMonitor (SNMP, OPC, web server) |
6. Software & Compliance
| Item | Details |
|---|---|
| OS (No Preload) | None (supports Windows XP/2000/Vista, XP Embedded, Linux) |
| Certifications | CE, cULus 508/1950, FCC Class A, EN 55022 Class B |
| EMC | EN 61000-6-2/-4; IEC 61000-4-2/-3/-4/-5/-6 |
| Lifecycle | Discontinued (end 12/2017) |
