6SL3320-1TG31-8AA3

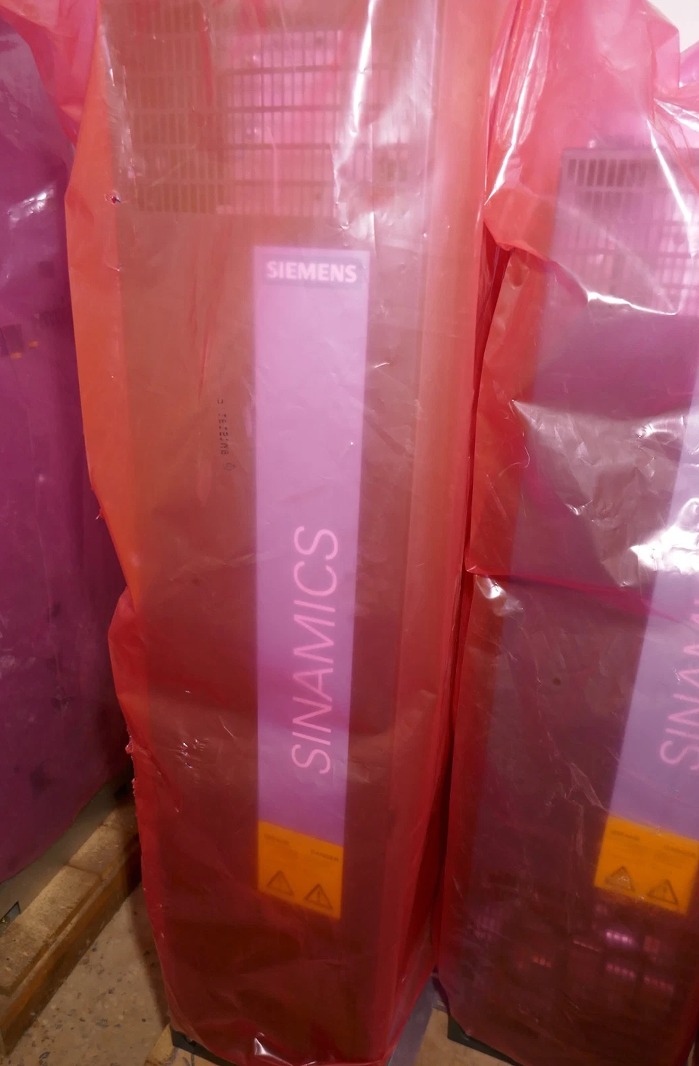

SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 675 V – 1035V OUTPUT: 3AC 500 V – 690V, 175A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE
|
Parameter Category
|
Parameter Description
|
Specification Value
|
|---|---|---|
|
Basic Identification
|
Order No.
|
6SL3320‑1TG31‑8AA3
|
|
Series
|
SINAMICS S120
|
|
|
Type
|
Single Motor Module (DC-to-AC)
|
|
|
Cooling
|
Internal air cooling
|
|
|
Enclosure (Protection Class)
|
IP20
|
|
|
Weight
|
152.0 kg
|
|
|
Dimensions (H × W × D)
|
1532 mm × 325 mm × 544 mm
|
|
|
DC Link Input
|
DC Input Voltage
|
675 … 1035 V DC
|
|
Nominal DC Link
|
For 3AC 500 … 690 V supply
|
|
|
DC Link Connection
|
DCP/DCN, DCPA/DCNA, DCPS/DCNS
|
|
|
3-Phase AC Output
|
Output Voltage
|
500 … 690 V AC, 3-phase
|
|
Rated Output Current
|
175 A (continuous)
|
|
|
Peak Current
|
Typically 2 × rated (application-dependent)
|
|
|
Output Frequency
|
0 … 550 Hz (servo/vector/V/f)
|
|
|
Efficiency
|
> 98.5 %
|
|
|
Control & Logic
|
Control Interface
|
DRIVE-CLiQ (3 ports)
|
|
24 V DC Supply
|
1 × 24 V DC (electronics)
|
|
|
Motor Connection
|
1 × 3-phase motor terminal
|
|
|
Safety Interface
|
1 × Safety Integrated port
|
|
|
Temperature Sensor Input
|
KTY84-130, PTC, Pt100
|
|
|
PE Connections
|
2 × protective earth terminals
|
|
|
Performance & Protection
|
Control Modes
|
Servo, vector, V/f control
|
|
Safety Integrated
|
SIL2 (IEC 61508), PLd (EN ISO 13849-1), Cat. 3
|
|
|
Ambient Temperature
|
0 … +40 °C (derate above 40 °C)
|
|
|
Altitude
|
Up to 2000 m (derate above 1000 m)
|
|
|
Protection Functions
|
Overcurrent, overvoltage, overtemperature, undervoltage
|
|
|
Scope of Delivery
|
Included Items
|
1 × Motor Module 6SL3320‑1TG31‑8AA3; 2 × DRIVE-CLiQ cables; 1 × Set of warning signs
|
|
Typical Applications
|
Application Scenarios
|
Heavy-duty industrial drives; High-power servo systems; 500/690 V machine tools, presses, conveyors; Marine, offshore, and large material handling
|
