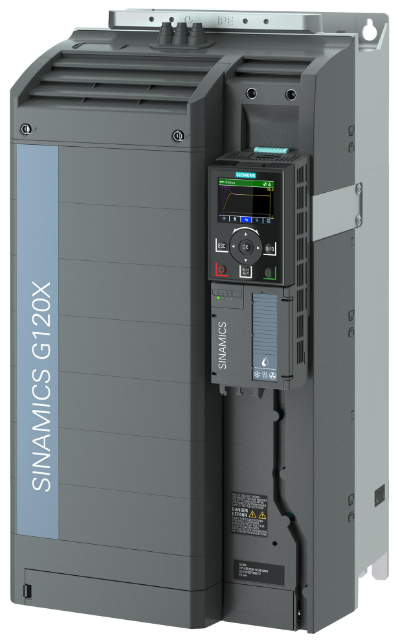

6SL3220-3YD42-0UF0
SINAMICS G120XA Rated power 75kW 3AC 380V -20% to 440V +10% unfiltered 110% 60s per 600s with integrated IOP-2 Integrated Fieldbus: PROFINET(PN), Ethernet/IP 6DI, 2DQ, 2AI, 1AQ, 1Mot_t I/O extension option Protection: IP20 Frame Size: FSF 709x305x360 (HxWxD)
| Specification | Details |
| Model | 6SL3220-3YD42-0UF0 |
| Series | SINAMICS G120XA |
| Rated Power | 75 kW |
| Supply Voltage | 3AC 380V -20% to 440V +10% |
| Filter | Unfiltered |
| Overload Capability | 110% for 60s per 600s |
| Operator Panel | Integrated IOP-2 |
| Integrated Fieldbus | PROFINET (PN), Ethernet/IP |
| Digital Inputs (DI) | 6 |
| Digital Outputs (DQ) | 2 |
| Analog Inputs (AI) | 2 |
| Analog Outputs (AQ) | 1 |
| Motor Temperature Sensor | 1 x Mot_t (Motor temperature) |
| Expansion | I/O extension option |
| Protection Class | IP20 |
| Frame Size | FSF |
| Dimensions (HxWxD) | 709 x 305 x 360 mm |
| Net Weight | 60.3 kg |
| Country of Origin | China |
