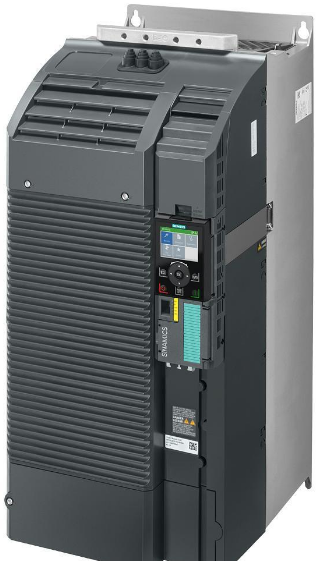

6SL3210-1PC24-2UL0
SINAMICS G120 POWER MODULE PM240-2 UNFILTERED WITH BUILT IN BRAKING CHOPPER 3AC200-240V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 7.5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 11kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
| Product | |
| Article Number (Market Facing Number) | 6SL3210-1PC24-2UL0 |
| Product Description | SINAMICS G120 POWER MODULE PM240-2 UNFILTERED WITH BUILT IN BRAKING CHOPPER 3AC200-240V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 7.5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 11kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8 |
| Product family | SINAMICS G120 |
| POWER MODULE PM240-2 | |
| Input Power voltage | 3AC200-240V +10/-20% |
| Frequency | 47-63HZ |
| OUTPUT HIGH OVERLOAD | 7.5KW |
| AMBIENT TEMP | -20 TO +50 DEG C |
| OUTPUT LOW OVERLOAD | 11kW |
| AMBIENT TEMP | -20 TO +40 DEG C |
| Size | 472 X 200 X 237 (HXWXD) |
| Protection | IP20 |
| Net Weight (kg) | 18,300 Kg |
| Package size unit of measure | 356,00 x 495,00 x 300,00MM |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
| Additional Product Information | |
| EAN | 4042948668504 |
| UPC | 804766090356 |
| Commodity Code | 85044095 |
| LKZ_FDB/ CatalogID | D11.1SD |
| Product Group | 9775 |
| Group Code | R220 |
