6SL3224-0BE22-2UA0

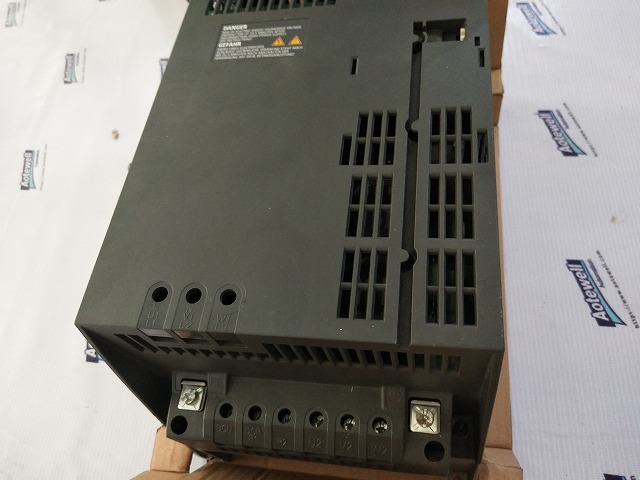

Image similar
***spare part*** SINAMICS G120 PM240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 2.2 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 °C 270 x 153 x 165 (HxWxD), FSB degree of protection IP20 without Control Unit and BOP
| Product | |
| Article Number (Market Facing Number) | 6SL3224-0BE22-2UA0 |
| Product Description | ***spare part*** SINAMICS G120 PM240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 2.2 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 °C 270 x 153 x 165 (HxWxD), FSB degree of protection IP20 without Control Unit and BOP |
| Series name | SINAMICS G120 |
| PM240 | |
| Power Module | |
| Input voltage | 380-480 V 3 AC |
| Power Rated | 2.2 kW |
| Frequency | 47-63 Hz |
| Rated current with line reactor | 6.10 A |
| Rated current without line reactor | 7.60 A |
| Temperature | (-10 to +50 °C) |
| Protection Level | IP20 |
| Frame size | FSB |
| Rated power (LO) | 2.20 kW 3.00 hp |
| Rated power (HO) | 2.20 kW 3.00 hp |
| Rated current (LO) | 5.90 A |
| Rated current (HO) | 5.90 A |
| Max. output current | 11.80 A |
| Warranty | 1 YEAR |
| Net Weight (kg) | 4,000 Kg |
| Packaging Dimension | 220.00MM x 320.00MM x 200.00MM |
| Country of origin | Great Britain |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4019169453615 |
| UPC | 662643434330 |
| Commodity Code | 85044085 |
| LKZ_FDB/ CatalogID | D11.1SD |
| Product Group | 9486 |
| Group Code | R2S3 |
