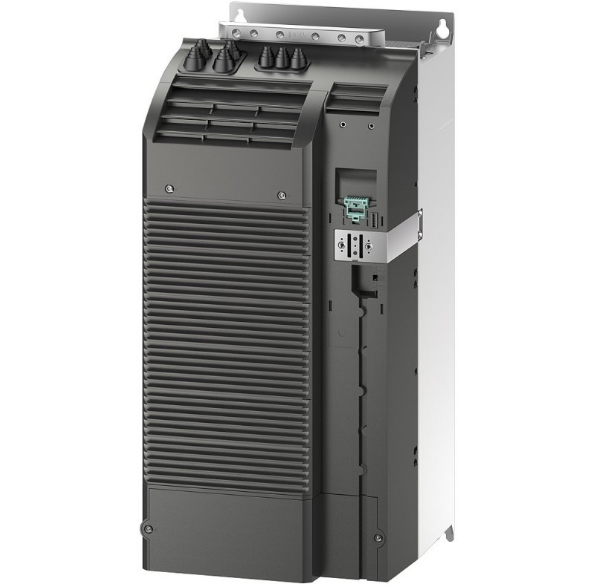

6SL3210-1PH28-0AL0
SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 55KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 75kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
| Product | |
| Article Number (Market Facing Number) | 6SL3210-1PH28-0AL0 |
| Product Description | SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 55KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 75kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8 |
| Series name | SINAMICS G120 |
| POWER MODULE | |
| PM240-2 | |
| Input | |
| Line voltage | 500 … 690 V ±10 % |
| Line frequency | 47 … 63 Hz |
| Rated current (LO) | 78.00 A |
| Rated current (HO) | 66.00 A |
| FIRMWARE | VERSION V4.7 HF8 |
| Output | |
| Number of phases | 3 AC |
| Rated voltage | 690V IEC 600V NEC 1) |
| Rated power (LO) | 75.00 kW 75.00 hp |
| Rated power (HO) | 55.00 kW 60.00 hp |
| Rated current (LO) | 80.00 A |
| Rated current (HO) | 62.00 A |
| Max. output current | 124.00 A |
| Pulse frequency | 2 kHz |
| Output frequency for vector control | 0 … 200 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Degree of protection | IP20 / UL open type |
| Temperature | （-20 to +40 DEG C ） |
| Warranty | 1 YEAR |
| Net Weight (kg) | 65,000 Kg |
| Packaging Dimension | 469,00MM x 745,00MM x 385,00MM |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4042948668467 |
| UPC | 195125335660 |
| Commodity Code | 85044086 |
| LKZ_FDB/ CatalogID | D11.1SD |
| Product Group | 9775 |
| Group Code | R220 |
