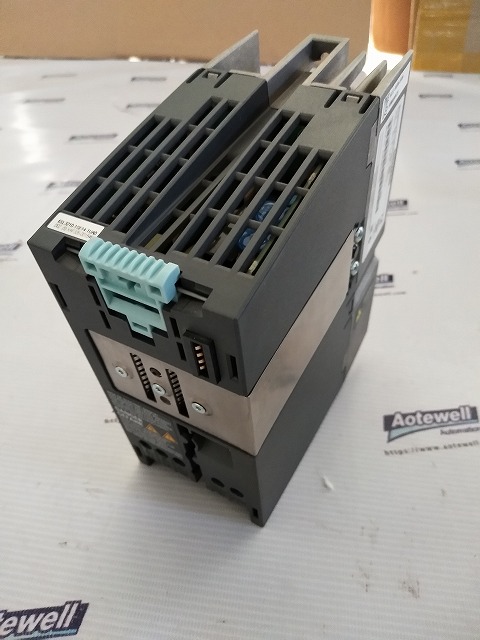

6SL3210-1PB17-4UL0
Image similar
SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 1/3AC200-240V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 1,1KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 1,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
| Product | |
| Article Number | 6SL3210-1PB17-4UL0 |
| Product Description | SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 1/3AC200-240V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 1,1KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 1,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6 |
| Product family | SINAMICS |
| POWER MODULE | |
| PM240-2 | |
| Current | —— |
| Voltage | 3AC200-240V +10/-10% |
| Frequency | 47-63Hz |
| Power Rated，HIGH OVERLOAD | 1,1KW |
| Power Rated,LOW OVERLOAD | 1,5kW |
| Degree of protection | IP20 |
| AMBIENT TEMP | (-10 TO +50 DEG C) |
| Size | 291 X 100 X 165 (HXWXD) |
| interface | —— |
| Warranty | 1 YEAR |
| Net Weight (kg) | 1,100 Kg |
| Packaging Dimension | 270,00 x 225,00 x 85,00MM |
| Country of origin | Great Britain |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4042948666241 |
| UPC | 887621830946 |
| Commodity Code | 85044085 |
| LKZ_FDB/ CatalogID | D11.1SD |
| Product Group | 9772 |
| Group Code | R220 |
