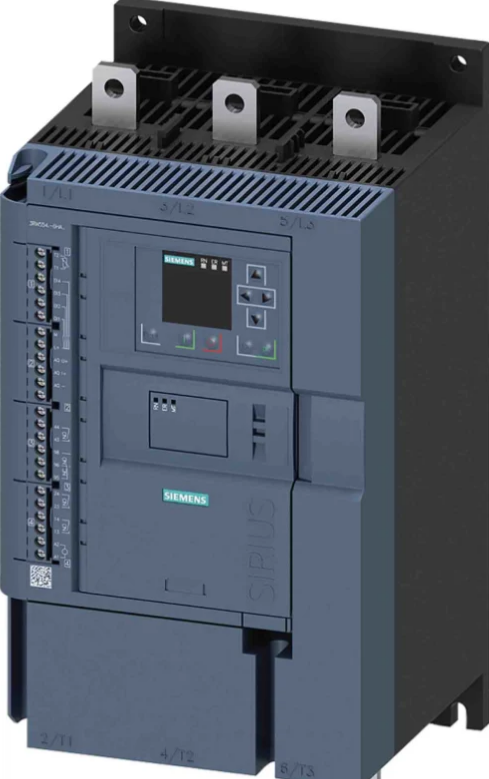

3RW5548-6HA16
SIRIUS soft starter 200-690 V 570 A, 110-250 V AC Screw terminals
| Product | |
| Article Number (Market Facing Number) | 3RW5548-6HA16 |
| Product Description | SIRIUS soft starter 200-690 V 570 A, 110-250 V AC Screw terminals |
| Series name | SIRIUS |
| SIRIUS soft starter | |
| temperature | 40 °C |
| voltage(V) | 200-690 V |
| Current(standard) | 570 A |
| voltage(V) | 110-250 V AC |
| General technical data | |
| starting voltage [%] | 20 …100 % |
| stopping voltage [%] | 50 %; non-adjustable |
| start-up ramp time of soft starter | 0 …360 s |
| ramp-down time of soft starter | 0 … 360 s |
| start torque [%] | 10 …100 % |
| stopping torque [%] | 10 … 100 % |
| torque limitation [%] | 20 … 200 % |
| current limiting value [%] adjustable | 125 … 800 % |
| breakaway voltage [%] adjustable | 40 …100 % |
| breakaway time adjustable | 0 … 2 s |
| number of parameter sets | 3 |
| accuracy class according to lEC 61557-12 | 5% |
| Delivery information | |
| Warranty | 1 YEAR |
| Net Weight (kg) | 13,700 Kg |
| Packaging Dimension | 331,00mm x 505,00mm x 341,00mm |
| Country of origin | Czech Republic |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4047621042213 |
| UPC | Not available |
| Commodity Code | 85371098 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Product Group | 4982 |
| Group Code | R711 |
