ATV630C31N4
variable speed drive, Altivar Process ATV600, ATV630, 315kW, 500hp, 380 to 480V, IP00

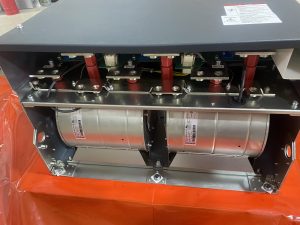

| Main | |
| Range of Product | Altivar Process ATV600 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Process and utilities |
| device short name | ATV630 |
| Variant | Standard version |
| Product destination | Asynchronous motors |
| Synchronous motors | |
| EMC filter | Integrated 164.04 ft (50 m) EN/IEC 61800-3 category C3 |
| IP degree of protection | IP00IEC 61800-5-1 |
| IP00IEC 60529 | |
| IP21 with kit VW3A9113)IEC 61800-5-1 | |
| IP21 with kit VW3A9113)IEC 60529 | |
| [Us] rated supply voltage | 380…480 V |
| Type of cooling | Forced convection |
| Supply frequency | 50…60 Hz – 5…5 % |
| [Us] rated supply voltage | 380…480 V – 15…10 % |
| Motor power kW | 315 kW normal duty) |
| 250 kW heavy duty) | |
| Maximum Horse Power Rating | 500 hp normal duty |
| 400 hp heavy duty | |
| Line current | 569 A 380 V normal duty) |
| 461 A 480 V normal duty) | |
| 457 A 380 V heavy duty) | |
| 375 A 480 V heavy duty) | |
| Prospective line Isc | 50 kA |
| Apparent power | 351 kVA 480 V normal duty) |
| 286 kVA 480 V heavy duty) | |
| Continuous output current | 616 A 2.5 kHz normal duty |
| 481 A 2.5 kHz heavy duty | |
| Asynchronous motor control profile | Constant torque standard |
| Optimized torque mode | |
| Variable torque standard | |
| Synchronous motor control profile | Permanent magnet motor |
| Synchronous reluctance motor | |
| Speed drive output frequency | 0.1…500 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…8 kHz with derating factor |
| 2…8 kHz adjustable | |
| Safety function | STO (safe torque off) SIL 3 |
| discrete input logic | 16 preset speeds |
| communication port protocol | Modbus serial |
| Ethernet | |
| Modbus TCP | |
| Complementary | |
| Mounting Mode | Wall mount |
| Maximum transient current | 678 A 60 s normal duty) |
| 722 A 60 s heavy duty) | |
| Phase | 3 phase |
| Frequency resolution | Display unit 0.1 Hz |
| Analog input 0.012/50 Hz | |
| Width | 23.54 in (598 mm) |
| Height | 47.05 in (1195 mm) |
| Depth | 14.96 in (380 mm) |
| Net Weight | 447.54 lb(US) (203 kg) |
| Analogue input number | 3 |
| Maximum output frequency | 500 kHz |
| Maximum Input Current per Phase | 569.0 A |
| Motor power range AC-3 | 250…500 kW 380…440 V 3 phase |
| 250…500 kW 480…500 V 3 phase | |
| Width | 23.54 in (598 mm) |
| Height | 47.05 in (1195 mm) |
| Depth | 14.96 in (380 mm) |
| Net Weight | 447.54 lb(US) (203 kg) |
