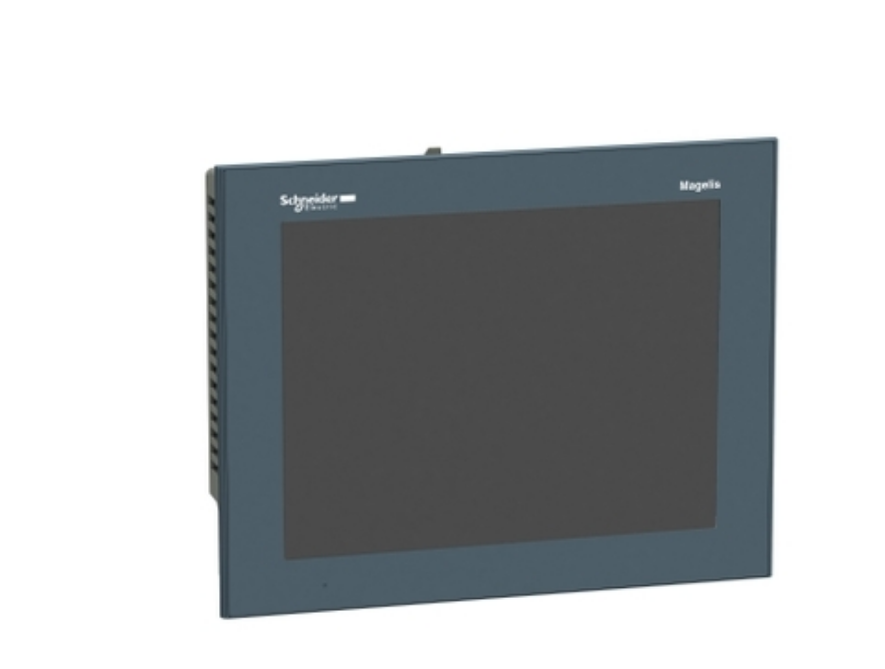

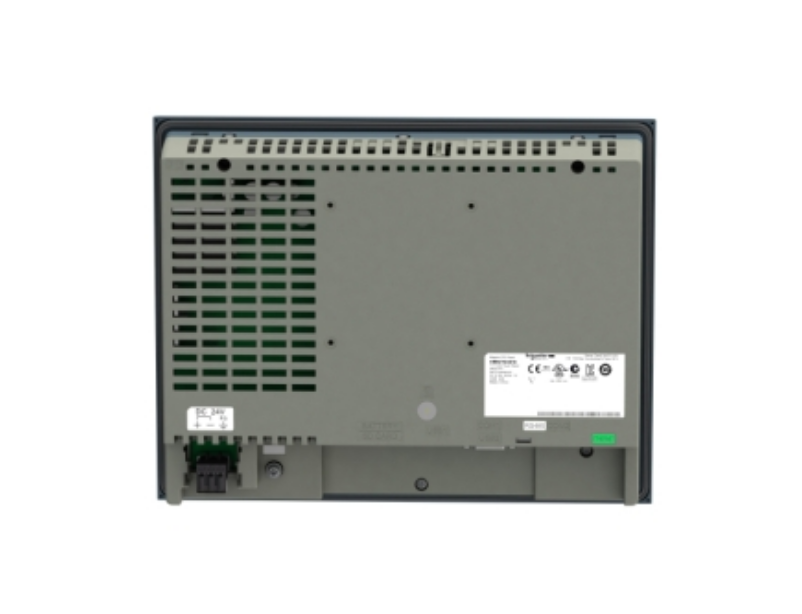

| Range of Product | Harmony GTO |
|---|---|
| Product or Component Type | Advanced touchscreen panel |
| display colour | 65536 colours |
| Display size | 10.4 inch |
| supply | External source |
| Operating System | Harmony |
| battery type | Lithium internal RAM 100 days 5 day(s) 10 year(s) |
| terminal type | Touchscreen display |
|---|---|
| Display Type | Backlit colour TFT LCD |
| Display Resolution | 640 x 480 pixels VGA |
| touch sensitive zone | 1024 x 1024 |
| touch panel | Resistive film, 1000000 cycles |
| backlight lifespan | 50000 hours white 77 °F (25 °C) |
| brightness | 16 levels by touch panel 16 levels by software |
| character font | Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean ASCII Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| supply voltage limits | 19.2…28.8 V |
| inrush current | 30 A |
| maximum power consumption in W | 12 W when power is not supplied to external devices 7 W when backlight is OFF 8 W when backlight is dimmed 17 W |
| local signalling | Status LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF) COM2 LED yellow, steady data is being transmitted COM2 LED yellow, faded no data transmission SD card LED green, steady card is inserted SD card LED green, faded card is not inserted or is not being accessed |
| software designation | Vijeo Designer configuration software >= V6.1 |
| memory description | Flash EPROM, 96 MB |
| data backed up | 512 kB internal RAM SRAM) |
| data storage equipment | SD card, <= 32 GB SDHC card, <= 32 GB |
| downloadable protocols | Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Schneider Electric Modicon Modbus TCP |
| integrated connection type | COM1 serial link SUB-D 9 RS232C 2400…115200 bps COM2 serial link RJ45 RS485 2400…115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI Ethernet RJ45 10BASE-T/100BASE-TX Ethernet RJ45 IEEE 802.3 USB 2.0 type A USB 2.0 type mini B |
| product mounting | Flush mounting |
| fixing mode | By 4 screw clamps |
| front material | PPT |
| Enclosure Material | PPT |
| type of cooling | Natural convection |
| Width | 10.73 in (272.5 mm) |
| Height | 8.44 in (214.5 mm) |
| Depth | 2.24 in (57 mm) |
| Net Weight | 4.41 lb(US) (2 kg) |
| Standards | UL 508 EN 61131-2 IEC 61000-6-2 |
|---|---|
| Product Certifications | CULus CE C-tick KCC |
| Ambient air temperature for operation | 32…131 °F (0…55 °C) |
| ambient air temperature for storage | -4…140 °F (-20…60 °C) |
| relative humidity | 10…90 % without condensation |
| operating altitude | < 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2 |
| vibration resistance | 3.5 mm 5…9 Hz) – X, Y, Z directions for 10 cycles (approx. 100 min) – EN/IEC 61131-2 1 gn 9…150 Hz) – X, Y, Z directions for 10 cycles (approx. 100 min) – EN/IEC 61131-2 |
| resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
