ProSoft, Communications Module, Interface, Enhanced Modbus, Master/Slave

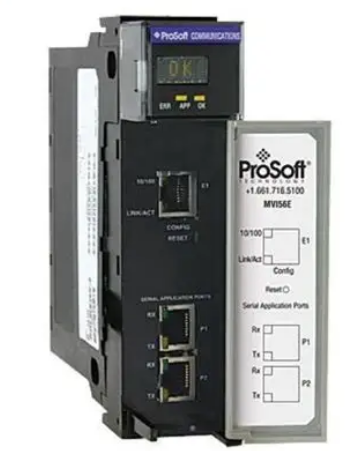

MVI56E-MCMR
| Technical specifications for MVI56E-MCMR | |
| Manufacturer | Allen Bradley |
| Product Type | Enhanced Modbus Master/Slave Communications Interface Module with Reduced Data Block |
| Product Line | ControlLogix |
| Part Number | MVI56E-MCMR |
| Weight | 3.00 lbs (1.36 kg) |
| Backplane Current Load | 800 mA @ 5 V DC |
| Module width | Single slot |
| Compatible rack | 1756 chassis |
| Data size | 5,000 words |
| Communication port | One (1) RJ45 configuration port; Two (2) Serial Application ports |
| Ethernet Data Rate | 10 / 100 Mbps |
| Serial data rate | 110 baud to 115.2 kbps |
| MODBUS functionality | Master / Slave |
| LED Indicators | Module status, Battery status, Application status, Module Status |
| Operating Temperature | 32° F to 140° F (0° C to 60° C) |
| Storage Temperature | -40° F to 185° F (-40° C to 85° C) |
| Operating Shock | 30 g |
| Relative humidity | 5% to 95% (without condensation) |
| Slot(s) | 1 |
| Rack Type | Remote |
| Data Transfer Type | Ladder Logic |
| Baud Rate | 110 baud-115.2 kbps |
| Commands per Master Port | 100 max. |
| Node Address | 1-247 |
| Shock | 30g Operational |
| UPC | 886739898213 |
