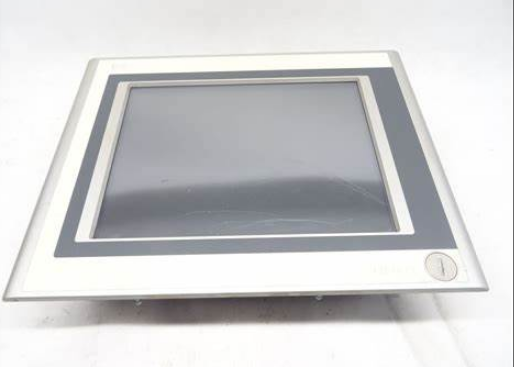

5PP520.1505-00
Power Panel 520 15″ XGA TFT display with touch screen (resistive), connections for 1x RS232, 3x USB 2.0, 1x Ethernet 10/100/1000, can be expanded with an interface board, IP65 protection (front), order 24 VDC connector for power supply separately (screw clamp terminal block: 0TB103.9, cage clamp terminal block: 0TB103.91).
General information
| LEDs | Power, CF, Link, Run |
| B&R ID code | 0xB4CF |
| Cooling | Fanless |
| Battery | |
| Type | Renata 950 mAh |
| Service life | 4 years |
| Removable | Yes, accessible from the outside |
| Variant | Lithium ion |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| EAC | Yes |
Controller
| Bootloader | BIOS |
| Mode/Node switches | 2, 16 positions each (back) |
| Watchdog | MTCX |
| Power failure logic | |
| Controller | MTCX |
| Buffer time | 10 ms |
| Memory | |
| Type | DDR2 SDRAM |
| Memory size | Max. 2 GB |
| Graphics | |
| Controller | Intel® Graphics Media Accelerator 500 |
Display
| Type | TFT color |
| Diagonal | 15″ (381 mm) |
| Colors | 16 million |
| Resolution | XGA, 1024 x 768 pixels |
| Contrast | 700:1 |
| Viewing angles | |
| Horizontal | Direction R = 80° / Direction L = 80° |
| Vertical | Direction U = 70° / Direction D = 70° |
| Backlight | |
| Type | LED |
| Brightness | 350 cd/m² |
| Brightness (dimmable) | Typ. 20 to 400 cd/m² |
| Half-brightness time | 50,000 h |
| Touch screen | |
| Technology | Analog, resistive |
| Controller | B&R, serial, 12-bit |
| Transmittance | 81% ±3% |
Interfaces
| COM1 | |
| Type | RS232, modem supported, not galvanically isolated |
| Variant | 9-pin male DSUB connector |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 | |
| Type | Type I |
| SD memory card slot | |
| Type | SD card |
| USB | |
| Quantity | 3 |
| Type | USB 2.0 |
| Variant | Type A |
| Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Current-carrying capacity | Max. 1 A per connection |
| Ethernet | |
| Quantity | 1 |
| Controller | Intel 82574 |
| Variant | Shielded RJ45 port |
| Transfer rate | 10/100/1000 Mbit/s |
Keys
| Function keys | No |
| System keys | No |
| Service life | – |
| LED luminous intensity | – |
Slots
| Interface board | Yes |
| I/O board | No |
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV |
| Nominal current | 1.5 A |
| Inrush current | Typ. 3 A, max. 50 A for <300 µs |
| Power consumption | 31 W |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card, connected IF board or optional IF cover) Front: IP65, protected against dust and hose-directed water |
Ambient conditions
| Temperature | |
| Operation | 0 to 55°C |
| Storage | -20 to 60°C |
| Transport | -20 to 60°C |
| Relative humidity | |
| Operation | See temperature/humidity diagram |
| Storage | See temperature/humidity diagram |
| Transport | See temperature/humidity diagram |
| Vibration | |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock | |
| Operation | 15 g, 11 ms |
| Storage | 30 g, 6 ms |
| Transport | 30 g, 6 ms |
| Elevation | |
| Operation | Max. 3000 m (component-dependent) |
Mechanical properties
| Housing | |
| Material | Galvanized plate |
| Front | |
| Frame | Aluminum, naturally anodized |
| Panel overlay | |
| Material | Polyester |
| Light background color | RAL 9006 |
| Dark border color around display | RAL 7024 |
| Gasket | Flat gasket around display front |
| Dimensions | |
| Width | 435 mm |
| Height | 330 mm |
| Depth | 62.7 mm |
| Weight | 5100 g |
