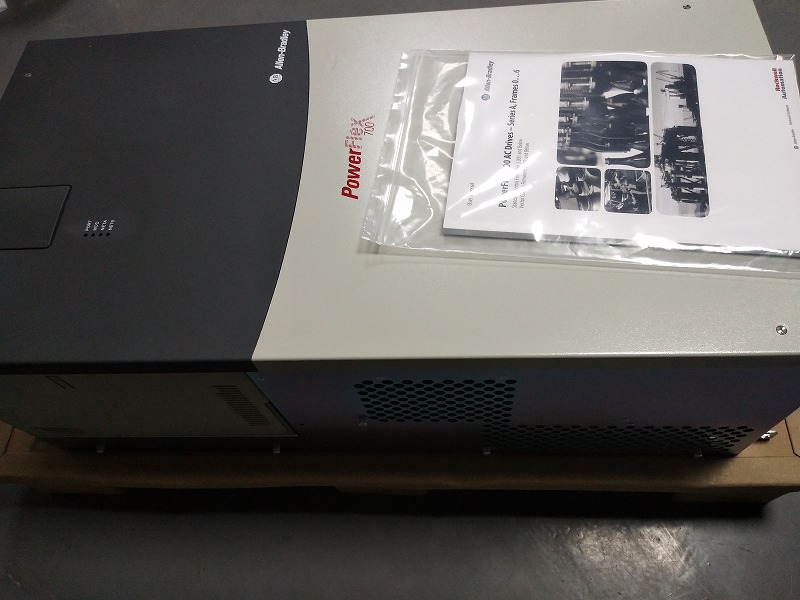

20G1AND186AA0NNNNN
PowerFlex Air Cooled 755 AC Drive
PowerFlex 755 AC Packaged Drive,Air Cooled,Open Type,480 VAC, 3 PH,186 Amps, 150HP ND, 125HP HD,AC In w/Prchg, no DC Terminals,Frame 6,EMC Filter,DB Transistor,Blank (No HIM),No Option,No Option,No Option,No Option,No Option,Carton & Documents
| Series | PowerFlex 755 |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 20G1AND186AA0NNNNN |
| Manufacturer | Rockwell Automation |
| Default CM Cap Connection | Jumper removed |
| Internal Resistor | No |
| Internal Transistor | Yes |
| Control Method | V/Hz control, vector control with FORCE庐 technology, sensorless vector control, and permanent magnet motor control |
| Frame | 6 |
| Communication | Ethernet I/P |
| Voltage Rating | 480V AC, 3-Phase |
| Continuous Output Current, ND | 186 Amperes |
| Continuous Output Power, ND | 150 HP |
| Continuous Output Current, HD | 156 Amperes |
| Continuous Output Power, HD | 125 HP |
| Human Interface Module (HIM) | Not Included |
| Frames | 6…8 |
| Enclosure Type | AC Input with Precharge, no DC Terminals |
| Frames 2 | 2…7 |
| Enclosure Type 2 | IP20/IP00, NEMA/UL Type Open |
| Voltage | 480 Volts AC/650 Volts DC |
| Filtering | Yes |
