20G1AND248AA0NNNNN
PowerFlex Air Cooled 755 AC Drive

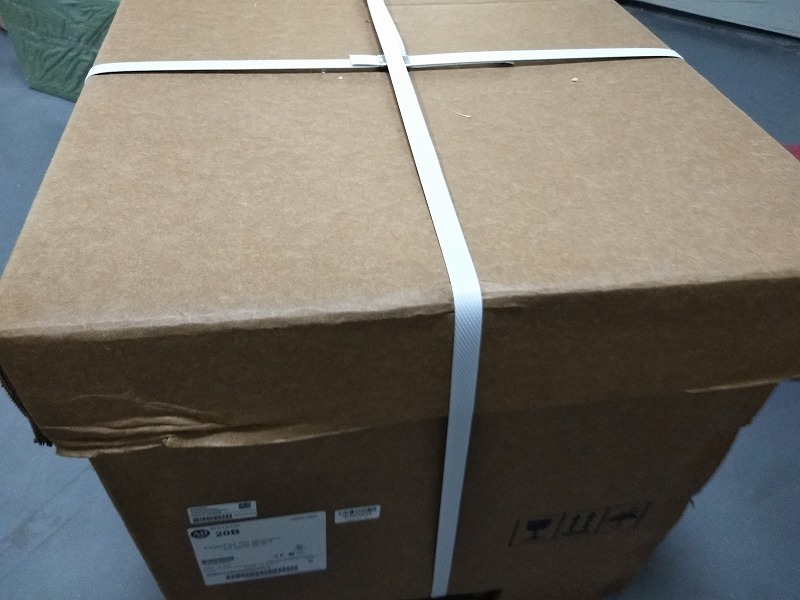

755 AC Packaged Drive,Air Cooled,Open Type,480 VAC, 3 PH,248 Amps, 200HP ND, 150HP HD,AC In w/Prchg, no DC Terminals,Frame 6,EMC Filter,DB Transistor,Blank (No HIM),No Option,No Option,No Option,No Option,No Option,Carton & Documents
| Brand | Allen-Bradley |
| Manufacturer: | Rockwell Automation / Allen-Bradley |
| Product Family: | PowerFlex 753 |
| Input Voltage Class: | 480VAC |
| Nominal Motor Voltage | 460VAC |
| Input Phase: | 3-Phase |
| Output Current: | 248A |
| Output Power: | 200HP ND and 150HP HD |
| Operation with single phase with derate | Supported |
| Frame: | 6 |
| Enclosure Rating: | IP00 / IP20 |
| HIM: | No door mounted HIM |
| Dynamic Braking | Transistor |
| Part Number/Catalog No. | 20G1AND248AA0NNNNN |
| Series | PowerFlex 755 |
| Frames | 6…8 |
| Enclosure Type | AC Input with Precharge, no DC Terminals |
| Frames 2 | 2…7 |
| Enclosure Type 2 | IP20/IP00, NEMA/UL Type Open |
| Voltage | 480 Volts AC/650 Volts DC |
| Filtering | Yes |
| Default CM Cap Connection | Jumper Removed |
| Internal Resistor | No |
| Internal Transistor | Yes |
